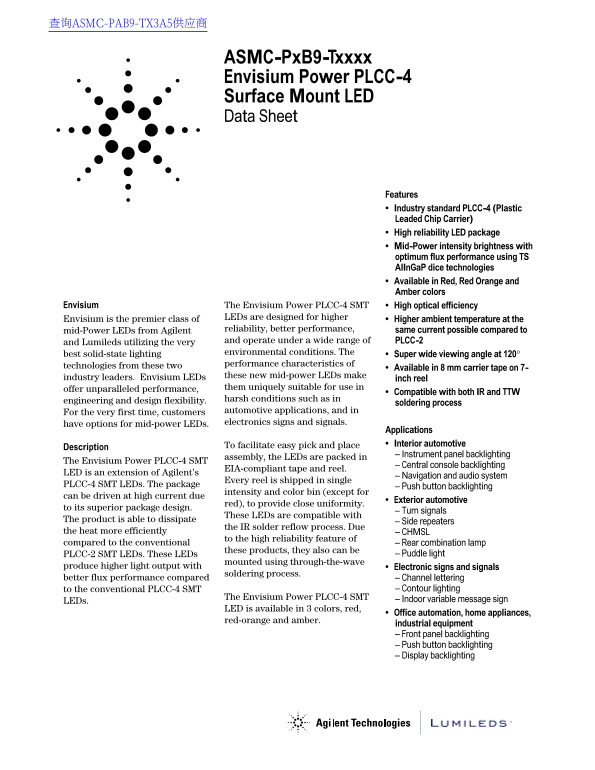

ASMC-Px B9-Txxxx Envisium Power PLCC-4 Surface Mount LED Data Sheet

Features Industry standard PLCC-4 (Plastic Leaded Chip Carrier) High reliability LED package Mid-Power intensity brightness with optimum flux performance using TS Al In Ga P dice technologies Available in Red, Red Orange and Amber colors

Envisium The Envisium Power PLCC-4 SMT High optical efficiency

Envisium is the premier class of LEDs are designed for higher Higher ambient temperature at the mid-Power LEDs from Agilent reliability, better performance, same current possible compared to and Lumileds utilizing the very and operate under a wide range of PLCC-2 best solid-state lighting environmental conditions. The Super wide viewing angle at 120° technologies from these two performance characteristics of

Available in 8 mm carrier tape on 7-

industry leaders. Envisium LEDs these new mid-power LEDs make

inch reel

offer unparalleled performance, them uniquely suitable for use in

Compatible with both IR and TTW

engineering and design flexibility. harsh conditions such as in

soldering process

For the very first time, customers automotive applications, and in have options for mid-power LEDs. electronics signs and signals.

Applications To facilitate easy pick and place Interior automotive

Description

– Instrument panel backlighting

assembly, the LEDs are packed in

The Envisium Power PLCC-4 SMT

– Central console backlighting

EIA-compliant tape and reel.

LED is an extension of Agilent’s

– Navigation and audio system

Every reel is shipped in single

PLCC-4 SMT LEDs. The package – Push button backlighting

intensity and color bin (except for

can be driven at high current due

Exterior automotive

red), to provide close uniformity.

to its superior package design.

– Turn signals

These LEDs are compatible with

The product is able to dissipate – Side repeaters

the IR solder reflow process. Due

the heat more efficiently – CHMSL

to the high reliability feature of

compared to the conventional – Rear combination lamp

these products, they also can be

PLCC-2 SMT LEDs. These LEDs – Puddle light

mounted using through-the-wave

produce higher light output with Electronic signs and signals

soldering process.

better flux performance compared – Channel lettering

to the conventional PLCC-4 SMT – Contour lighting

The Envisium Power PLCC-4 SMT – Indoor variable message sign

LEDs.

LED is available in 3 colors, red,

Office automation, home appliances,

red-orange and amber.

industrial equipment – Front panel backlighting – Push button backlighting – Display backlighting
