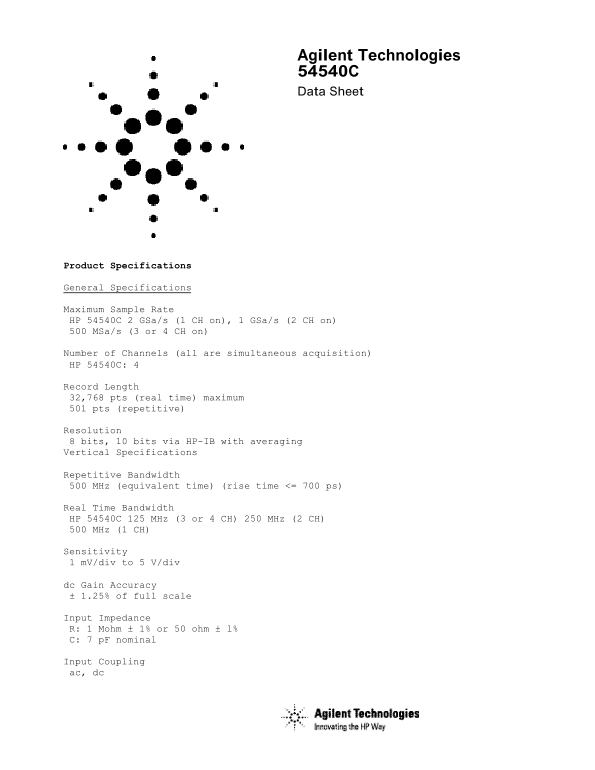

Page 1 Text Content
Agilent Technologies 54540C Data Sheet
Product Specifications
General Specifications
Maximum Sample Rate HP 54540C 2 GSa/s (1 CH on), 1 GSa/s (2 CH on) 500 MSa/s (3 or 4 CH on)
Number of Channels (all are simultaneous acquisition) HP 54540C: 4
Record Length 32,768 pts (real time) maximum 501 pts (repetitive)
Resolution 8 bits, 10 bits via HP-IB with averaging Vertical Specifications
Repetitive Bandwidth 500 MHz (equivalent time) (rise time <= 700 ps)
Real Time Bandwidth HP 54540C 125 MHz (3 or 4 CH) 250 MHz (2 CH) 500 MHz (1 CH)
Sensitivity 1 m V/div to 5 V/div
dc Gain Accuracy ± 1.25% of full scale
Input Impedance R: 1 Mohm ± 1% or 50 ohm ± l% C: 7 p F nominal
Input Coupling ac, dc
Page Summary Contents For Agilent Technologies 54540C Data Sheet
Manual Details
| Brand | Agilent Technologies |
|---|---|
| Pages | 5 |
| File Size | 27.29 KB |
| Published | May 13, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the measurement bandwidth for different channel configurations?
The Real Time Bandwidth varies: 250 MHz for 2 channels, 500 MHz for 1 channel, and 125 MHz for 3 or 4 channels.
How can I improve frequency resolution when using FFT?
Frequency Resolution is determined by (minimum sample rate)/(required points), ranging from 997 kHz (3-4 ch) to 3.9 MHz (1 ch).
Can this oscilloscope support advanced testing standards?
Yes, with Option 001, it can perform telecom mask measurements for ANSI, CCITT, and ISDN standards.
What connectivity options are available for data storage and updates?
It supports HP-IB, RS232 (Serial), Centronics (Parallel), and has a DOS-compatible disk drive to store setups and software upgrades.
