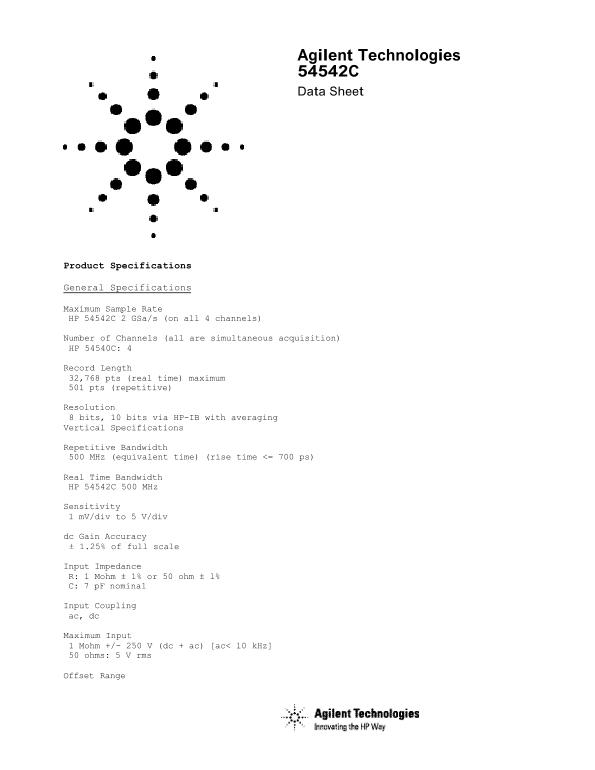

Agilent Technologies 54542C User's Manual - Page 1

›

Page 1 Text Content

Agilent Technologies 54542C Data Sheet

Product Specifications

General Specifications

Maximum Sample Rate HP 54542C 2 GSa/s (on all 4 channels)

Number of Channels (all are simultaneous acquisition) HP 54540C: 4

Record Length 32,768 pts (real time) maximum 501 pts (repetitive)

Resolution 8 bits, 10 bits via HP-IB with averaging Vertical Specifications

Repetitive Bandwidth 500 MHz (equivalent time) (rise time <= 700 ps)

Real Time Bandwidth HP 54542C 500 MHz

Sensitivity 1 m V/div to 5 V/div

dc Gain Accuracy ± 1.25% of full scale

Input Impedance R: 1 Mohm ± 1% or 50 ohm ± l% C: 7 p F nominal

Input Coupling ac, dc

Maximum Input 1 Mohm +/- 250 V (dc + ac) [ac< l0 k Hz] 50 ohms: 5 V rms

Offset Range

Page Summary Contents For Agilent Technologies 54542C User's Manual

Page 1 Agilent Technologies 54542C Data Sheet Product Specifications General Specifications Maximum Sample Rate HP 54542C 2 GSa/s (on all 4 channels) Number of Channels (all are simultaneous acquisition) HP ...

Page 2 Vertical Sensitivity Available Offset 1 m V to 50 m V/div ±2 V >50 m V to 250 m V/div ±l0 V >250 m V to 1.25 V/div ±50 V >1.25 V/div to 5 V/div ±250 V Offset Accuracy ±(l.25% of channel offse...

Page 3 - Width V base Time at min voltage + Width V amptd Time at max voltage Duty cycle V top Time at voltage Delta time V ac rms User-Definable Both upper and lower thresholds can be set from -25% to 125% ...

Page 4 Optional Active Probing The HP 1144A active probe features 800-MHz bandwidth, 2-p F input capacitance, and 1-Mohm input resistance. The HP 1145A two-channel active probe features 750-MHz bandwidth, 2-...

Page 5 Power Voltage 115/230 Vac, -25% to +15%, 48 to 440Hz, 350 VA maximum Weight Net: approximately 11.8 kg (261b) Shipping: Approximately 21.3 kg (47 lb) Dimensions Height: 218 mm (8.6 in) Width: 440 mm (...

Manual Details

Brand	Agilent Technologies
Pages	5
File Size	28.44 KB
Published	May 13, 2026

90 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the maximum acquisition rate for this device?

The HP 54542C supports a Maximum Sample Rate of 2 GSa/s on all 4 channels.

How can I store or upgrade the device's software?

A DOS-compatible disk drive can be used to store settings and is also utilized to download and upgrade the oscilloscope''s operating-system software.

What advanced analysis functions are available?

Math/Analysis Functions include operators like add, subtract, multiply, versus, integrate, differentiate, invert, magnify, and FFT.

Does this scope support standardized telecommunications testing?

Yes, Option 001 allows making telecom mask-template measurements to ANSI, CCITT, and ISDN standards for automatic pass/fail comparisons.
