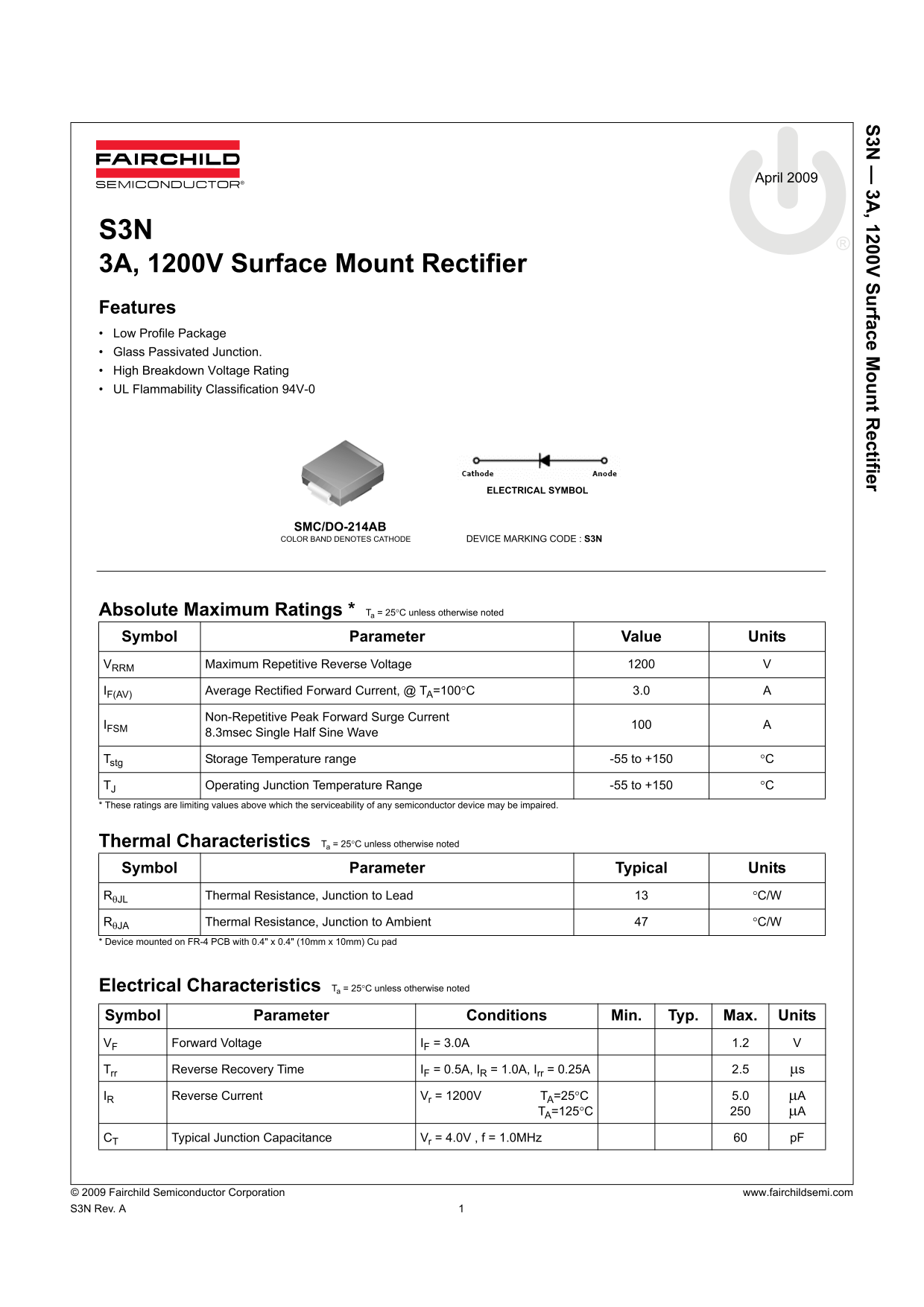

S3N 3A , 1200V Surface M ount R ectifier
April 2009
S3N 3A, 1200V Surface Mount Rectifier Features Low Profile Package Glass Passivated Junction. High Breakdown Voltage Rating UL Flammability Classification 94V-0
ELECTRICAL SYMBOL
SMC/DO-214AB COLOR BAND DENOTES CATHODE DEVICE MARKING CODE : S3N
Absolute Maximum Ratings * Ta = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current, @ TA=100°C 3.0
Non-Repetitive Peak Forward Surge Current
8.3msec Single Half Sine Wave
Tstg Storage Temperature range -55 to +150 °C
TJ Operating Junction Temperature Range -55 to +150 °C * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Ta = 25°C unless otherwise noted Symbol Parameter Typical Units RθJL Thermal Resistance, Junction to Lead °C/W RθJA Thermal Resistance, Junction to Ambient °C/W * Device mounted on FR-4 PCB with 0.4" x 0.4" (10mm x 10mm) Cu pad
Electrical Characteristics Ta = 25°C unless otherwise noted Symbol Parameter Conditions Min. Typ. Max. Units VF Forward Voltage IF = 3.0A 1.2 Trr Reverse Recovery Time IF = 0.5A, IR = 1.0A, Irr = 0.25A 2.5 μs
IR Reverse Current Vr = 1200V TA=25°C 5.0 μA
TA=125°C μA
CT Typical Junction Capacitance Vr = 4.0V , f = 1.0MHz p F
