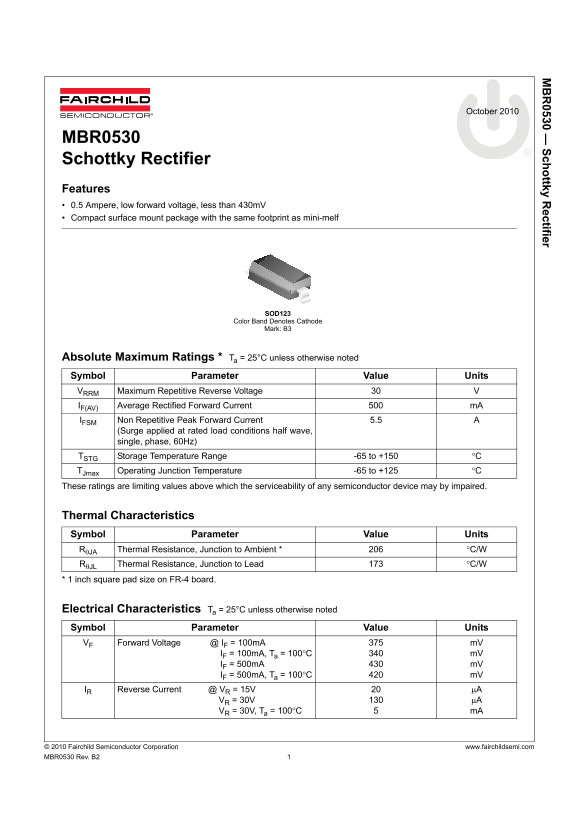

Fairchild MBR0530 Schottky Rectifier Data Handbook

0530 — Schottky R ectifier

October 2010

MBR0530 Schottky Rectifier Features 0.5 Ampere, low forward voltage, less than 430m V Compact surface mount package with the same footprint as mini-melf

SOD123

Color Band Denotes Cathode

Mark: B3

Absolute Maximum Ratings * Ta = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage

IF(AV) Average Rectified Forward Current m A IFSM Non Repetitive Peak Forward Current 5.5 (Surge applied at rated load conditions half wave, single, phase, 60Hz)

TSTG Storage Temperature Range -65 to +150 °C

TJmax Operating Junction Temperature -65 to +125 °C

These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Thermal Characteristics Symbol Parameter Value Units RθJA Thermal Resistance, Junction to Ambient * °C/W

RθJL Thermal Resistance, Junction to Lead °C/W

* 1 inch square pad size on FR-4 board.

Electrical Characteristics Ta = 25°C unless otherwise noted Symbol Parameter Value Units

VF Forward Voltage @ IF = 100m A m V IF = 100m A, Ta = 100°C m V IF = 500m A m V IF = 500m A, Ta = 100°C m V

IR Reverse Current @ VR = 15V μA

VR = 30V μA VR = 30V, Ta = 100°C m A

© 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com MBR0530 Rev. B2
