Fairchild FYPF2010DN 20A Schottky Barrier Rectifier Data Manual
Summary
A high-speed rectifier diode engineered for crucial power management applications. Featuring a low forward voltage drop and excellent handling of high frequencies, this component is ideal for switched mode power supplies and polarity protection circuits. The technical manual provides comprehensive data, including Absolute Maximum Ratings, detailed electrical characteristics, thermal impedance curves, and typical current/voltage performance graphs. This datasheet serves as a vital resource for electronics engineers designing reliable, efficient, and fast-switching DC systems.

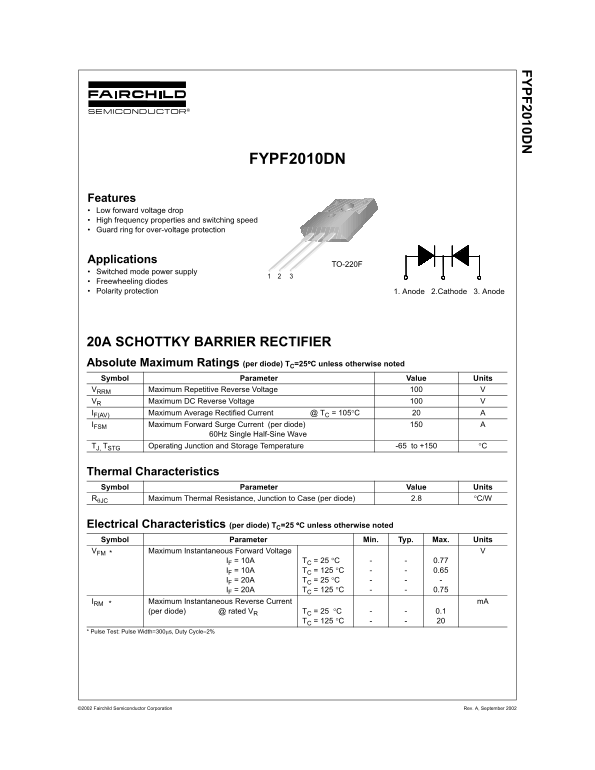

Page 1 Text Content
FYPF2010D
FYPF2010DN
Features Low forward voltage drop High frequency properties and switching speed Guard ring for over-voltage protection
Applications
TO-220F
Switched mode power supply
Freewheeling diodes Polarity protection 1. Anode 2.Cathode 3. Anode
20A SCHOTTKY BARRIER RECTIFIER Absolute Maximum Ratings (per diode) TC=25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage
VR Maximum DC Reverse Voltage
IF(AV) Maximum Average Rectified Current @ TC = 105°C
IFSM Maximum Forward Surge Current (per diode)
60Hz Single Half-Sine Wave
TJ, TSTG Operating Junction and Storage Temperature -65 to +150 °C
Thermal Characteristics Symbol Parameter Value Units RθJC Maximum Thermal Resistance, Junction to Case (per diode) 2.8 °C/W
Electrical Characteristics (per diode) TC=25 °C unless otherwise noted Symbol Parameter Min. Typ. Max. Units VFM * Maximum Instantaneous Forward Voltage
IF = 10A TC = 25 °C 0.77
IF = 10A TC = 125 °C 0.65
IF = 20A TC = 25 °C
IF = 20A TC = 125 °C 0.75
IRM * Maximum Instantaneous Reverse Current m A
(per diode) @ rated VR TC = 25 °C 0.1
TC = 125 °C
* Pulse Test: Pulse Width=300µs, Duty Cycle=2%
