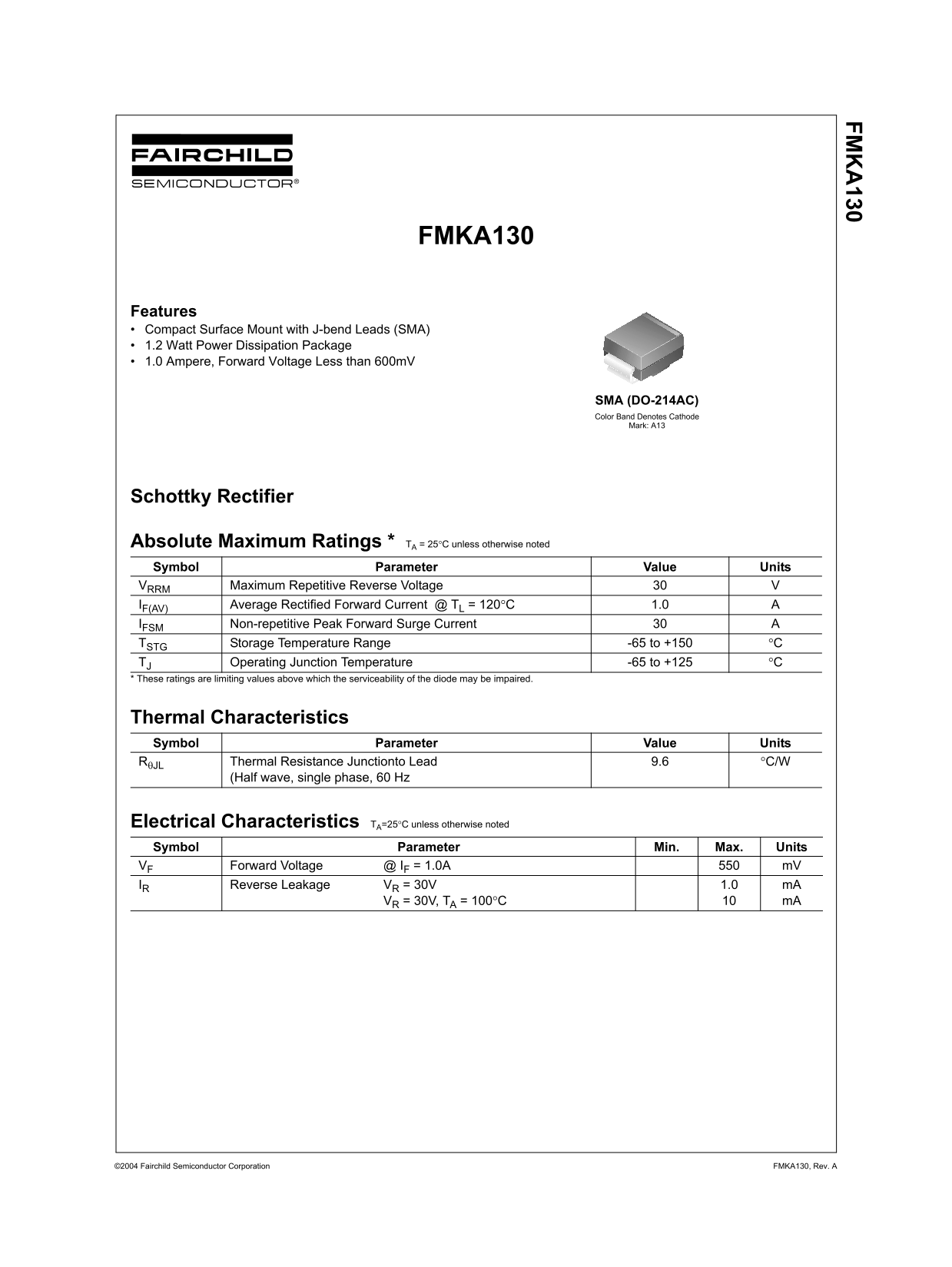

FMKA130
Features Compact Surface Mount with J-bend Leads (SMA) 1.2 Watt Power Dissipation Package 1.0 Ampere, Forward Voltage Less than 600m V
SMA (DO-214AC) Color Band Denotes Cathode Mark: A13
Schottky Rectifier
Absolute Maximum Ratings * TA = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current @ TL = 120°C 1.0 IFSM Non-repetitive Peak Forward Surge Current TSTG Storage Temperature Range -65 to +150 °C TJ Operating Junction Temperature -65 to +125 °C * These ratings are limiting values above which the serviceability of the diode may be impaired.
Thermal Characteristics Symbol Parameter Value Units RθJL Thermal Resistance Junctionto Lead 9.6 °C/W
(Half wave, single phase, 60 Hz
Electrical Characteristics TA=25°C unless otherwise noted Symbol Parameter Min. Max. Units VF Forward Voltage @ IF = 1.0A m V IR Reverse Leakage VR = 30V 1.0 m A
VR = 30V, TA = 100°C m A
©2004 Fairchild Semiconductor Corporation FMKA130, Rev. A
