Fairchild FYP2006DN Schottky Barrier Rectifier Data Handbook
Summary
Designed for professional engineers developing robust power electronics, this technical manual provides comprehensive specifications for the FYP2006DN rectifier diode. Ideal for high-performance applications such as switched-mode power supplies and freewheeling circuits requiring low voltage drop and fast switching capabilities, this datasheet details all critical performance metrics. Engineers can rely on detailed graphs of absolute maximum ratings, thermal characteristics, and electrical curves to ensure optimal system design across varying temperatures and load conditions.

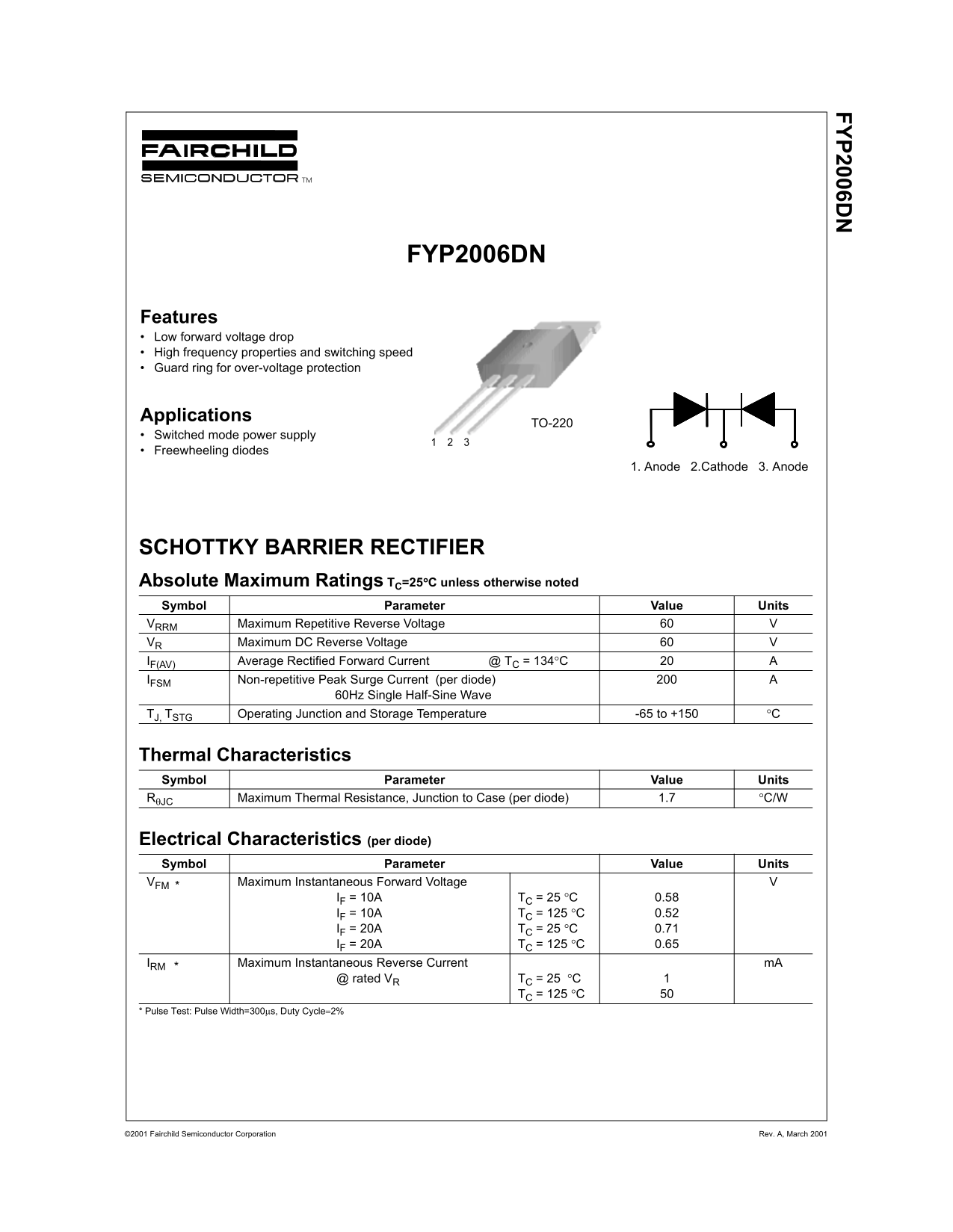

Page 1 Text Content
FYP2006D
FYP2006DN
Features Low forward voltage drop High frequency properties and switching speed Guard ring for over-voltage protection
Applications
TO-220
Switched mode power supply
Freewheeling diodes
1. Anode 2.Cathode 3. Anode
SCHOTTKY BARRIER RECTIFIER Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage
VR Maximum DC Reverse Voltage
IF(AV) Average Rectified Forward Current @ TC = 134°C
IFSM Non-repetitive Peak Surge Current (per diode)
60Hz Single Half-Sine Wave
TJ, TSTG Operating Junction and Storage Temperature -65 to +150 °C
Thermal Characteristics Symbol Parameter Value Units RθJC Maximum Thermal Resistance, Junction to Case (per diode) 1.7 °C/W
Electrical Characteristics (per diode) Symbol Parameter Value Units VFM * Maximum Instantaneous Forward Voltage
IF = 10A TC = 25 °C 0.58
IF = 10A TC = 125 °C 0.52 IF = 20A TC = 25 °C 0.71 IF = 20A TC = 125 °C 0.65
IRM * Maximum Instantaneous Reverse Current m A
@ rated VR TC = 25 °C
TC = 125 °C
* Pulse Test: Pulse Width=300µs, Duty Cycle=2%
©2001 Fairchild Semiconductor Corporation Rev. A, March 2001
Page Summary Contents For Fairchild FYP2006DN Schottky Barrier Rectifier Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 4 |
| File Size | 46.87 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can I use this device in life support systems?
No, it is not authorized for use as critical components in life support devices or systems without the express written approval of Fairchild Semiconductor Corporation.
What is the maximum non-repetitive peak surge current per diode?
The Non-repetitive Peak Surge Current (per diode) is rated at 200 A FSM.
What are the operating junction and storage temperature limits?
The Operating Junction and Storage Temperature range is specified as -65 to +150 °C.
What package type is available for this component?
This device comes in a TO-220 package.
