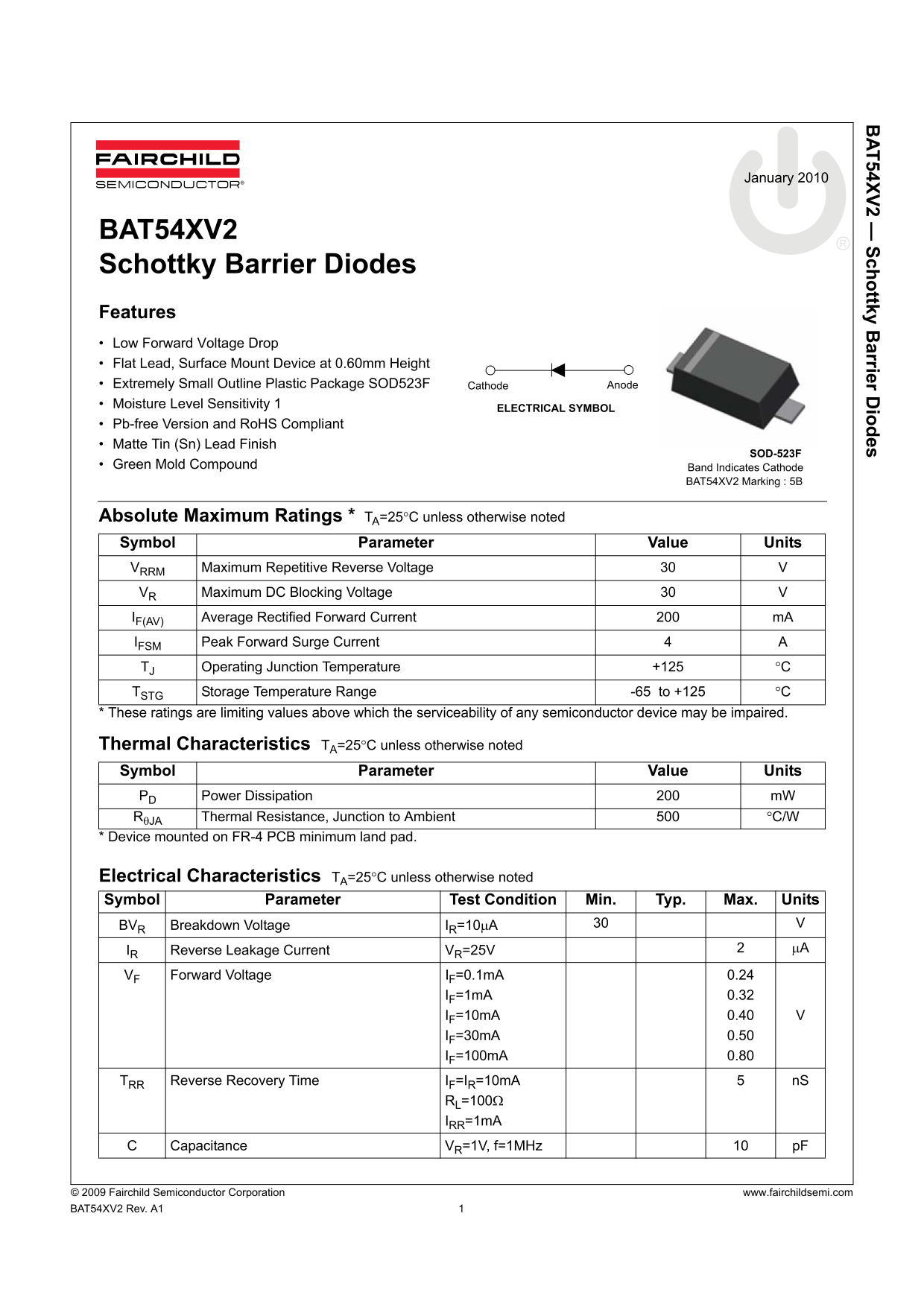

AT54XV2 — Schottky B arrier D iodes
January 2010
BAT54XV2 Schottky Barrier Diodes Features Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Cathode Anode Moisture Level Sensitivity 1
ELECTRICAL SYMBOL
Pb-free Version and Ro HS Compliant Matte Tin (Sn) Lead Finish
SOD-523F
Green Mold Compound Band Indicates Cathode
BAT54XV2 Marking : 5B
Absolute Maximum Ratings * TA=25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage VR Maximum DC Blocking Voltage IF(AV) Average Rectified Forward Current m A IFSM Peak Forward Surge Current TJ Operating Junction Temperature +125 °C TSTG Storage Temperature Range -65 to +125 °C * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics TA=25°C unless otherwise noted Symbol Parameter Value Units PD Power Dissipation m W RθJA Thermal Resistance, Junction to Ambient °C/W * Device mounted on FR-4 PCB minimum land pad.
Electrical Characteristics TA=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVR Breakdown Voltage IR=10μA
IR Reverse Leakage Current VR=25V μA
VF Forward Voltage IF=0.1m A 0.24
IF=1m A 0.32 IF=10m A 0.40 IF=30m A 0.50 IF=100m A 0.80
TRR Reverse Recovery Time IF=IR=10m A n S
RL=100Ω IRR=1m A
Capacitance VR=1V, f=1MHz p F
© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com BAT54XV2 Rev. A1
