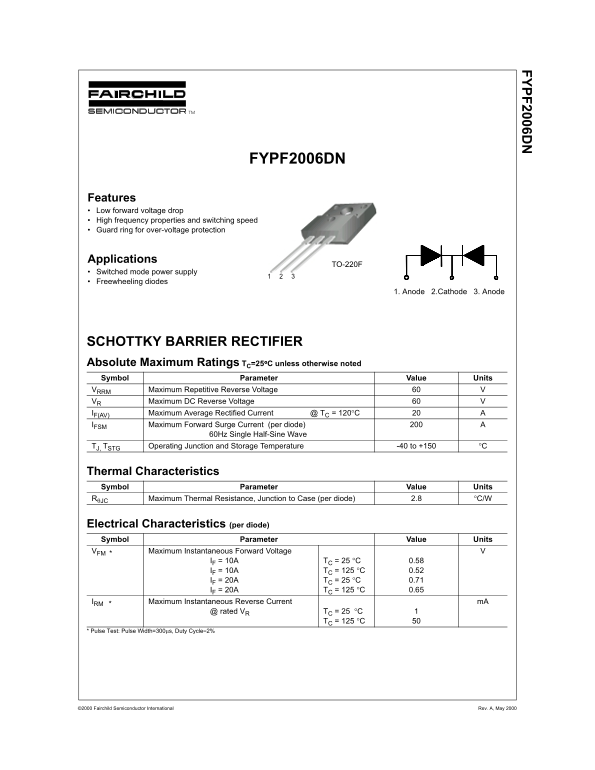

FYPF2006DN
Features Low forward voltage drop High frequency properties and switching speed Guard ring for over-voltage protection
Applications
TO-220F
Switched mode power supply
Freewheeling diodes
1. Anode 2.Cathode 3. Anode
SCHOTTKY BARRIER RECTIFIER Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol Parameter Value Units
VRRM Maximum Repetitive Reverse Voltage VR Maximum DC Reverse Voltage IF(AV) Maximum Average Rectified Current @ TC = 120°C IFSM Maximum Forward Surge Current (per diode)
60Hz Single Half-Sine Wave
TJ, TSTG Operating Junction and Storage Temperature -40 to +150 °C
Thermal Characteristics Symbol Parameter Value Units
RθJC Maximum Thermal Resistance, Junction to Case (per diode) 2.8 °C/W
Electrical Characteristics (per diode) Symbol Parameter Value Units VFM * Maximum Instantaneous Forward Voltage
IF = 10A TC = 25 °C 0.58
IF = 10A TC = 125 °C 0.52 IF = 20A TC = 25 °C 0.71 IF = 20A TC = 125 °C 0.65
IRM * Maximum Instantaneous Reverse Current m A
@ rated VR TC = 25 °C
TC = 125 °C
* Pulse Test: Pulse Width=300µs, Duty Cycle=2%
