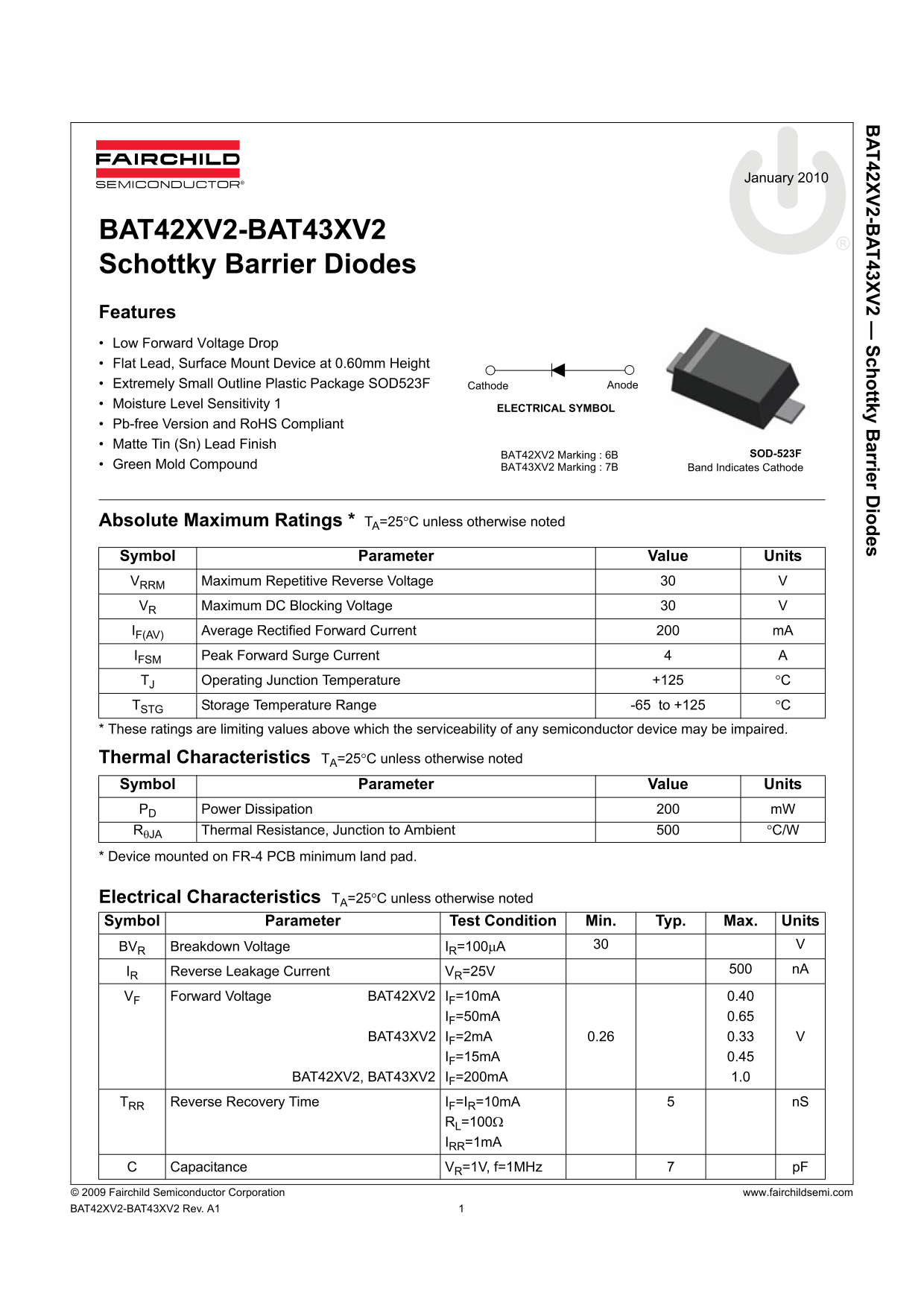

AT42XV2-B AT43XV2 — Schottky B arrier D iodes
January 2010
BAT42XV2-BAT43XV2 Schottky Barrier Diodes Features Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Cathode Anode Moisture Level Sensitivity 1
ELECTRICAL SYMBOL
Pb-free Version and Ro HS Compliant Matte Tin (Sn) Lead Finish
BAT42XV2 Marking : 6B SOD-523F
Green Mold Compound BAT43XV2 Marking : 7B Band Indicates Cathode
Absolute Maximum Ratings * TA=25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage VR Maximum DC Blocking Voltage IF(AV) Average Rectified Forward Current m A IFSM Peak Forward Surge Current TJ Operating Junction Temperature +125 °C TSTG Storage Temperature Range -65 to +125 °C * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics TA=25°C unless otherwise noted Symbol Parameter Value Units PD Power Dissipation m W RθJA Thermal Resistance, Junction to Ambient °C/W * Device mounted on FR-4 PCB minimum land pad.
Electrical Characteristics TA=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVR Breakdown Voltage IR=100μA
IR Reverse Leakage Current VR=25V n A
VF Forward Voltage BAT42XV2 IF=10m A 0.40
IF=50m A 0.65
BAT43XV2 IF=2m A 0.26 0.33
IF=15m A 0.45 BAT42XV2, BAT43XV2 IF=200m A 1.0
TRR Reverse Recovery Time IF=IR=10m A n S
RL=100Ω IRR=1m A
Capacitance VR=1V, f=1MHz p F
