Fairchild AC Input Phototransistor Optocouplers Data Handbook
Summary
The H11AAX-M series consists of AC input phototransistor optocouplers featuring two gallium-arsenide infrared emitting diodes connected in inverse parallel, driving a single silicon phototransistor output. Key features include bi-polar emitter input, built-in reverse polarity protection, UL recognition, and VDE approval. Available in H11AA1-M through H11AA4-M variants, these devices are designed for AC line monitoring, unknown polarity DC sensing, and telephone line interface applications. Suitable for industrial control systems and telecommunications equipment designers.

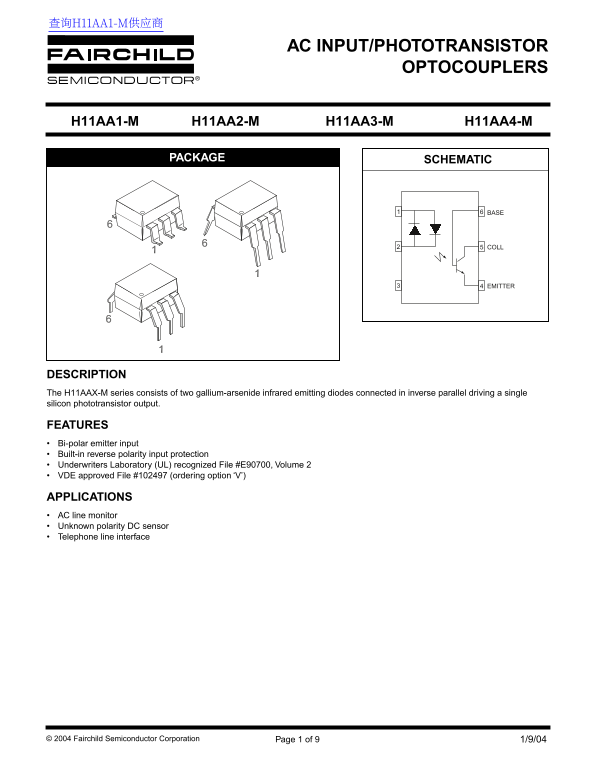

Page 1 Text Content
查询H11AA1-M供应商
AC INPUT/PHOTOTRANSISTOR
OPTOCOUPLERS
H11AA1-M H11AA2-M H11AA3-M H11AA4-M
PACKAGE SCHEMATIC
EMITTER
DESCRIPTION The H11AAX-M series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output.
FEATURES Bi-polar emitter input Built-in reverse polarity input protection Underwriters Laboratory (UL) recognized File #E90700, Volume 2 VDE approved File #102497 (ordering option ‘V’)
APPLICATIONS AC line monitor Unknown polarity DC sensor Telephone line interface
© 2004 Fairchild Semiconductor Corporation Page 1 of 9 1/9/04
Page Summary Contents For Fairchild AC Input Phototransistor Optocouplers Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 9 |
| File Size | 119.92 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum operating temperature for the H11AAX-M series?
The maximum operating temperature (Ta) is -40 to +100°C.
How do the H11AA models differ in terms of Current Transfer Ratio (CTR)?
CTR varies: H11AA4-M is 100%, H11AA3-M is 50%, H11AA1-M is 20%, and H11AA2-M is 10%.
What safety certifications does this optocoupler series have?
It has UL recognition (File E90700) and VDE approval (File 102497) available with ordering option 'V'.
What is the maximum continuous forward current for the emitter?
The maximum continuous forward current (If) for the emitter is 60 mA.
What is the reflow soldering peak temperature for the -M package?
The peak reflow temperature is 245°C, with a time above 183°C of 120–180 seconds.
