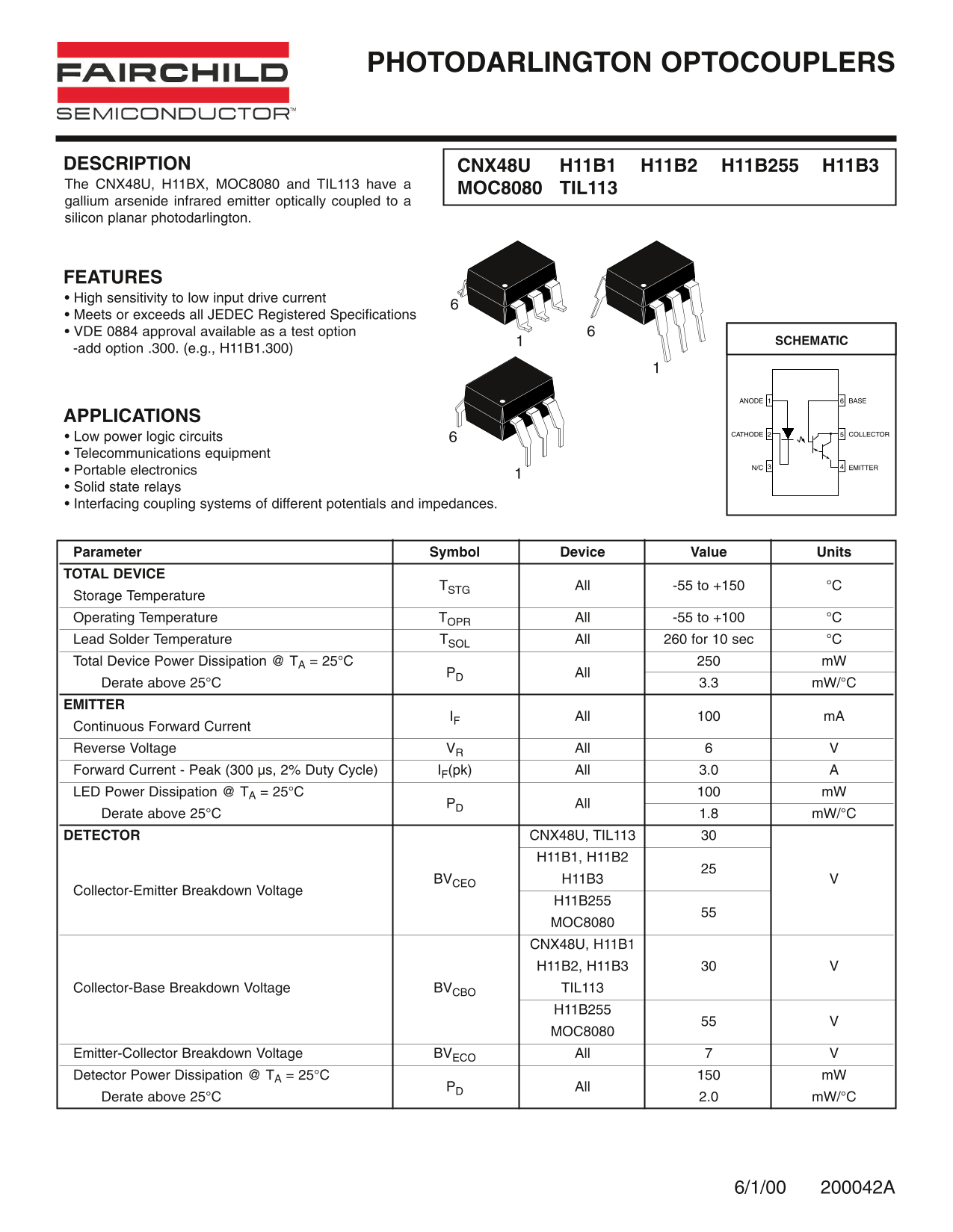

Page 1 Text Content
PHOTODARLINGTON OPTOCOUPLERS
DESCRIPTION CNX48U H11B1 H11B2 H11B255 H11B3 The CNX48U, H11BX, MOC8080 and TIL113 have a
MOC8080 TIL113
gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
FEATURES • High sensitivity to low input drive current • Meets or exceeds all JEDEC Registered Specifications • VDE 0884 approval available as a test option
SCHEMATIC
-add option .300. (e.g., H11B1.300)
ANODE
APPLICATIONS
CATHODE COLLECTOR
• Low power logic circuits • Telecommunications equipment
N/C EMITTER
• Portable electronics • Solid state relays • Interfacing coupling systems of different potentials and impedances.
Parameter Symbol Device Value Units TOTAL DEVICE
TSTG All -55 to +150 °C
Storage Temperature Operating Temperature TOPR All -55 to +100 °C Lead Solder Temperature TSOL All 260 for 10 sec °C Total Device Power Dissipation @ TA = 25°C m W
PD All
Derate above 25°C 3.3 m W/°C EMITTER
IF All m A
Continuous Forward Current Reverse Voltage VR All Forward Current - Peak (300 µs, 2% Duty Cycle) IF(pk) All 3.0 LED Power Dissipation @ TA = 25°C m W
PD All
Derate above 25°C 1.8 m W/°C DETECTOR CNX48U, TIL113
H11B1, H11B2 BVCEO H11B3
Collector-Emitter Breakdown Voltage
H11B255 MOC8080 CNX48U, H11B1 H11B2, H11B3 Collector-Base Breakdown Voltage BVCBO TIL113 H11B255 MOC8080
Emitter-Collector Breakdown Voltage BVECO All Detector Power Dissipation @ TA = 25°C m W
PD All
Derate above 25°C 2.0 m W/°C
