The IDT7005S/L is a high-performance 8K x 8 Dual-Port Static RAM, engineered for mission-critical systems requiring simultaneous and asynchronous data access from two independent ports. Featuring integrated arbitration logic and supporting semaphore signaling, it guarantees reliable, error-free operation in complex master/slave architectures. This comprehensive guide details the device's functional design, electrical specifications across military and commercial temperature grades, pin configurations, and low-power operational modes. Perfect for sophisticated embedded applications requiring high throughput and guaranteed data integrity.

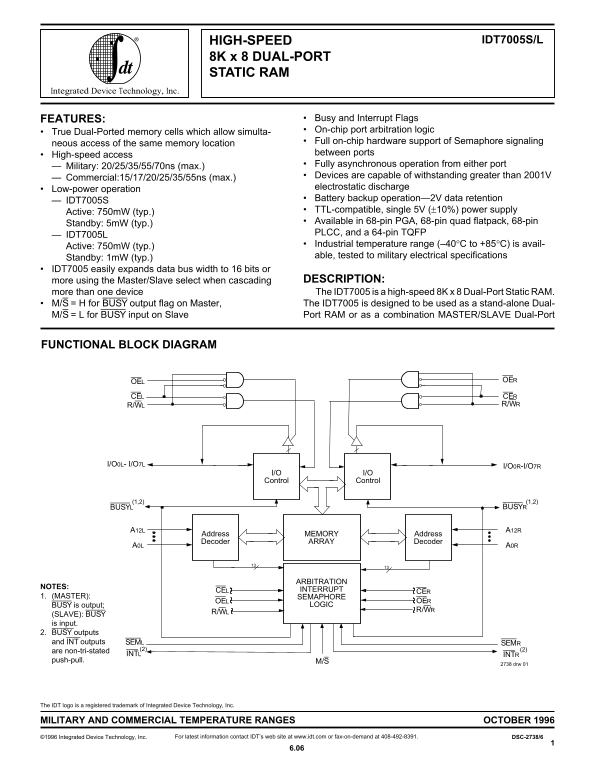

Page 1 Text Content
IDT7005S/LHIGH-SPEED
8K x 8 DUAL-PORT STATIC RAM
Integrated Device Technology, Inc.
FEATURES: Busy and Interrupt Flags On-chip port arbitration logic
True Dual-Ported memory cells which allow simulta-
Full on-chip hardware support of Semaphore signaling
neous access of the same memory location
between ports
High-speed access
Fully asynchronous operation from either port
Military: 20/25/35/55/70ns (max.)
Devices are capable of withstanding greater than 2001V
Commercial:15/17/20/25/35/55ns (max.)
electrostatic discharge
Low-power operation
Battery backup operation—2V data retention
IDT7005S
TTL-compatible, single 5V (±10%) power supply
Active: 750m W (typ.)
Available in 68-pin PGA, 68-pin quad flatpack, 68-pin
Standby: 5m W (typ.)
PLCC, and a 64-pin TQFP
IDT7005L
Industrial temperature range (–40°C to +85°C) is avail-
Active: 750m W (typ.)
able, tested to military electrical specifications
Standby: 1m W (typ.) IDT7005 easily expands data bus width to 16 bits or
more using the Master/Slave select when cascading DESCRIPTION: more than one device The IDT7005 is a high-speed 8K x 8 Dual-Port Static RAM. M/S = H for BUSY output flag on Master, The IDT7005 is designed to be used as a stand-alone Dual- M/S = L for BUSY input on Slave Port RAM or as a combination MASTER/SLAVE Dual-Port
FUNCTIONAL BLOCK DIAGRAM
OEL OER
CEL CER
R/WL R/WR
I/O I/O Control Control
BUSYL BUSYR
Address MEMORY Address Decoder ARRAY Decoder
ARBITRATION
NOTES:
CEL INTERRUPT
1. (MASTER): SEMAPHORE
OEL OER
BUSY is output; LOGIC
(SLAVE): BUSY is input. 2. BUSY outputs and INT outputs SEML SEMR
are non-tri-stated
INTL INTR
push-pull. M/S
2738 drw 01
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
MILITARY AND COMMERCIAL TEMPERATURE RANGES OCTOBER 1996
©1996 Integrated Device Technology, Inc. For latest information contact IDT’s web site at www.idt.com or fax-on-demand at 408-492-8391. DSC-2738/6
