This high-speed, low-power BiCMOS modulator is engineered for building robust off-line or DC-to-DC fixed frequency current-mode switching power supplies. Designed with dual push-pull output stages, it minimizes external component count while offering enhanced dynamic response via an internal discharge transistor. Featuring AEC-Q100 qualification and robust ESD protection, this module is ideal for demanding automotive and industrial applications requiring reliable power management control circuitry.

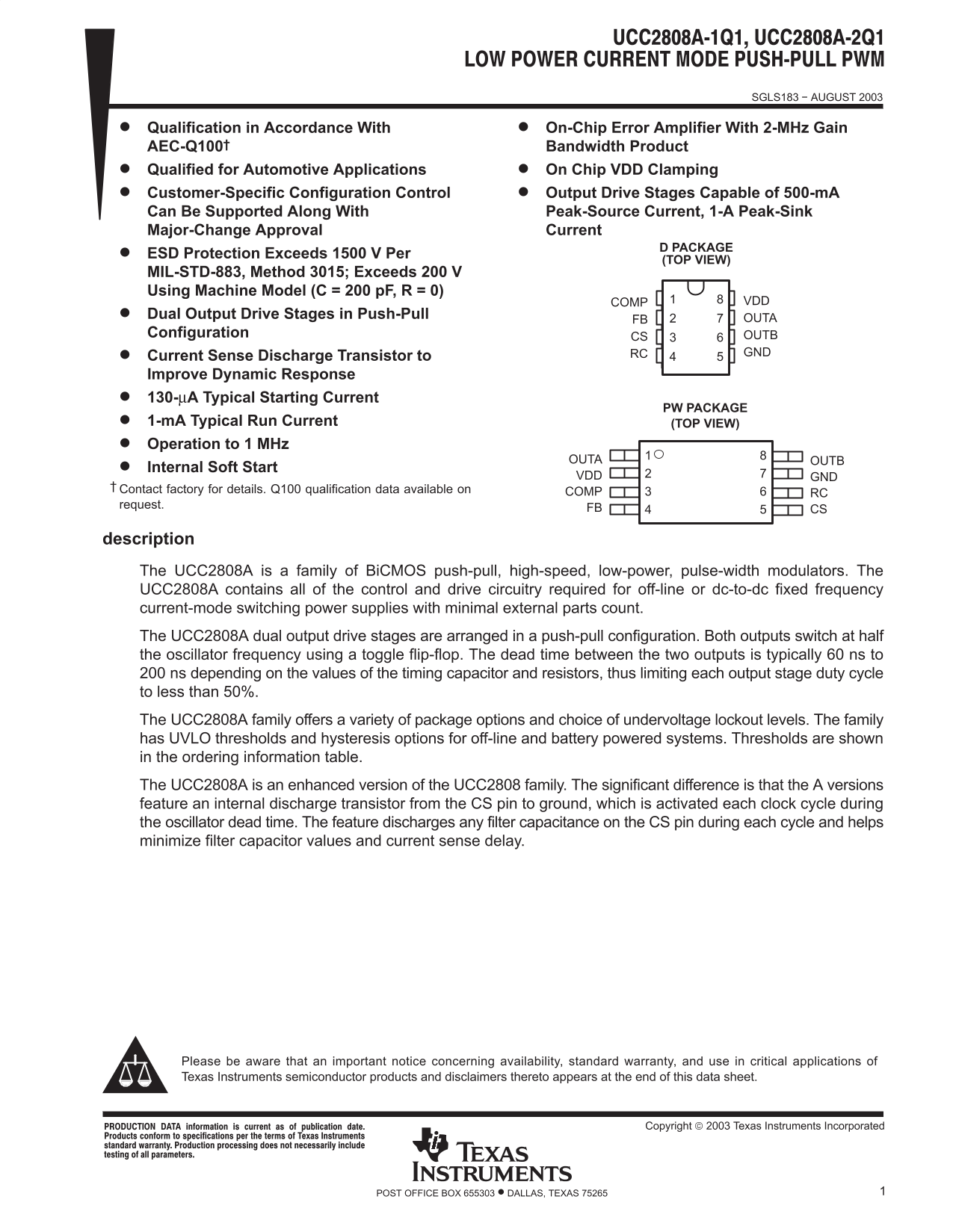

Page 1 Text Content
SGLS183 − AUGUST 2003
Qualification in Accordance With On-Chip Error Amplifier With 2-MHz Gain AEC-Q100† Bandwidth Product Qualified for Automotive Applications On Chip VDD Clamping Customer-Specific Configuration Control Output Drive Stages Capable of 500-m A Can Be Supported Along With Peak-Source Current, 1-A Peak-Sink Major-Change Approval Current
D PACKAGE
ESD Protection Exceeds 1500 V Per
(TOP VIEW)
MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 p F, R = 0)
COMP VDD
Dual Output Drive Stages in Push-Pull
FB OUTA
Configuration OUTB
RC GND
Current Sense Discharge Transistor to Improve Dynamic Response 130-µA Typical Starting Current
PW PACKAGE
1-m A Typical Run Current (TOP VIEW) Operation to 1 MHz
OUTA OUTB
Internal Soft Start
VDD GND
Contact factory for details. Q100 qualification data available on COMP
request.
FB CS
description The UCC2808A is a family of Bi CMOS push-pull, high-speed, low-power, pulse-width modulators. The UCC2808A contains all of the control and drive circuitry required for off-line or dc-to-dc fixed frequency current-mode switching power supplies with minimal external parts count. The UCC2808A dual output drive stages are arranged in a push-pull configuration. Both outputs switch at half the oscillator frequency using a toggle flip-flop. The dead time between the two outputs is typically 60 ns to 200 ns depending on the values of the timing capacitor and resistors, thus limiting each output stage duty cycle to less than 50%. The UCC2808A family offers a variety of package options and choice of undervoltage lockout levels. The family has UVLO thresholds and hysteresis options for off-line and battery powered systems. Thresholds are shown in the ordering information table. The UCC2808A is an enhanced version of the UCC2808 family. The significant difference is that the A versions feature an internal discharge transistor from the CS pin to ground, which is activated each clock cycle during the oscillator dead time. The feature discharges any filter capacitance on the CS pin during each cycle and helps minimize filter capacitor values and current sense delay.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2003 Texas Instruments Incorporated ! "#$ ! %#&'" ($)
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For TI Texas Instruments UCC2808A-1Q1 Data Sheet Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 11 |
| File Size | 297.99 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum peak sink current for the dual output stages?
The modules can handle a sink current of up to 1.0 A in peak capacity.
How does the 'A' version variation improve functionality?
It includes an internal discharge transistor from the CS pin to ground, which minimizes filter capacitor values and current sense delay.
What are the typical timing characteristics between the two outputs?
The dead time is typically between 60 ns to 200 ns, depending on the values of the timing components.
What types of power supplies is the UCC2808A designed for?
It is suitable for off-line or DC-to-DC fixed frequency current-mode switching power supplies.
