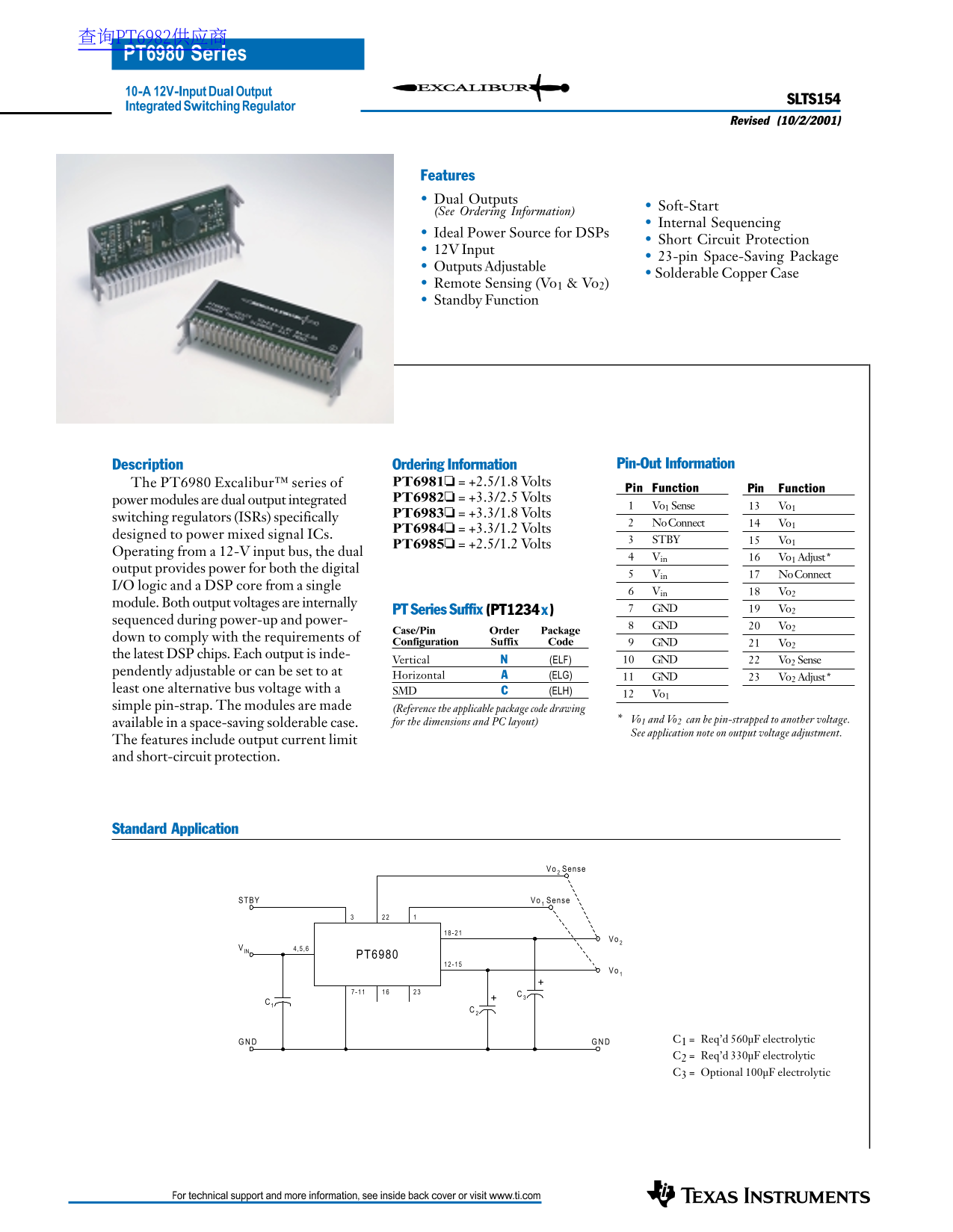

查询PT6982供应商 PT6980 Series 10-A 12V-Input Dual Output
SLTS154
Integrated Switching Regulator
Revised (10/2/2001)
Features Dual Outputs
Soft-Start
(See Ordering Information)
Internal Sequencing
Ideal Power Source for DSPs
Short Circuit Protection
12V Input
23-pin Space-Saving Package
Outputs Adjustable
• Solderable Copper Case
Remote Sensing (Vo1 & Vo2) Standby Function
Description Ordering Information Pin-Out Information
The PT6980 Excalibur™ series of PT6981 = +2.5/1.8 Volts
Pin Function Pin Function
power modules are dual output integrated PT6982 = +3.3/2.5 Volts
Vo1 Sense Vo1
PT6983 = +3.3/1.8 Volts
switching regulators (ISRs) specifically
No Connect Vo1
PT6984 = +3.3/1.2 Volts
designed to power mixed signal ICs.
STBY Vo1
PT6985 = +2.5/1.2 Volts
Operating from a 12-V input bus, the dual
Vin Vo1 Adjust *
output provides power for both the digital
Vin No Connect
I/O logic and a DSP core from a single
Vin Vo2
module. Both output voltages are internally
PT Series Suffix (PT1234x) GND Vo2
sequenced during power-up and power-
GND Vo2
Case/Pin Order Package
down to comply with the requirements of
Configuration Suffix Code GND Vo2
the latest DSP chips. Each output is inde-
Vertical (ELF) GND Vo2 Sense
pendently adjustable or can be set to at
Horizontal (ELG) GND Vo2 Adjust *
least one alternative bus voltage with a SMD (ELH)
simple pin-strap. The modules are made (Reference the applicable package code drawing
for the dimensions and PC layout) Vo1 and Vo2 can be pin-strapped to another voltage.
available in a space-saving solderable case.
See application note on output voltage adjustment.
The features include output current limit and short-circuit protection.
Standard Application
Vo 2 Sense
STBY Vo 1 Sense
IN 4,5 ,6
PT6980
C1 = Req’d 560µF electrolytic C2 = Req’d 330µF electrolytic C3 = Optional 100µF electrolytic
