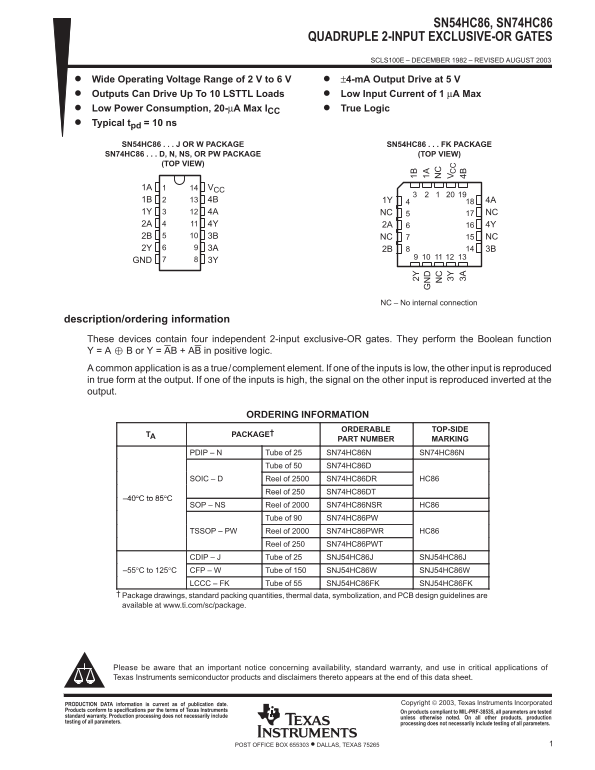

Page 1 Text Content

SN54HC86, SN74HC86

QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES

SCLS100E – DECEMBER 1982 – REVISED AUGUST 2003

Wide Operating Voltage Range of 2 V to 6 V ±4-m A Output Drive at 5 V Outputs Can Drive Up To 10 LSTTL Loads Low Input Current of 1 µA Max Low Power Consumption, 20-µA Max ICC True Logic Typical tpd = 10 ns

SN54HC86 J OR W PACKAGE SN54HC86 FK PACKAGE SN74HC86 D, N, NS, OR PW PACKAGE (TOP VIEW)

(TOP VIEW)

1A VCC

1B 4B 1Y 4A 1Y 4A NC NC 2A 4Y 2A 4Y 2B 3B NC NC 2Y 3A 2B 3B GND 3Y

NC – No internal connection

description/ordering information These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A B or Y = AB + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

ORDERING INFORMATION 1B

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

PDIP – N Tube of 25 SN74HC86N SN74HC86N 3Y 3A 4B

Tube of 50 SN74HC86D

SOIC – D SN74HC86DR HC86Reel of 2500

Reel of 250 SN74HC86DT

–40 C to 85

SOP – NS Reel of 2000 SN74HC86NSR HC86

Tube of 90 SN74HC86PW

TSSOP – PW SN74HC86PWR HC86Reel of 2000

Reel of 250 SN74HC86PWT

CDIP – J Tube of 25 SNJ54HC86J SNJ54HC86J

–55 C to 125 CFP – W Tube of 150 SNJ54HC86W SNJ54HC86W

LCCC – FK Tube of 55 SNJ54HC86FK SNJ54HC86FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
