Texas Instruments CDC208 Data Manual1 Specification
Summary
The CDC208 is a professional clock driver designed for reliable signal fanout applications in digital circuits. This dual-channel device takes one input and distributes it to four outputs while minimizing skew, ensuring stable clock distribution. The manual provides comprehensive technical specifications, including 3-state output control options (OE) and operational parameters across a wide temperature range of –40°C to 85°C. Ideal for electronics engineers needing high-precision, low-skew timing signals for system integration and complex digital designs.

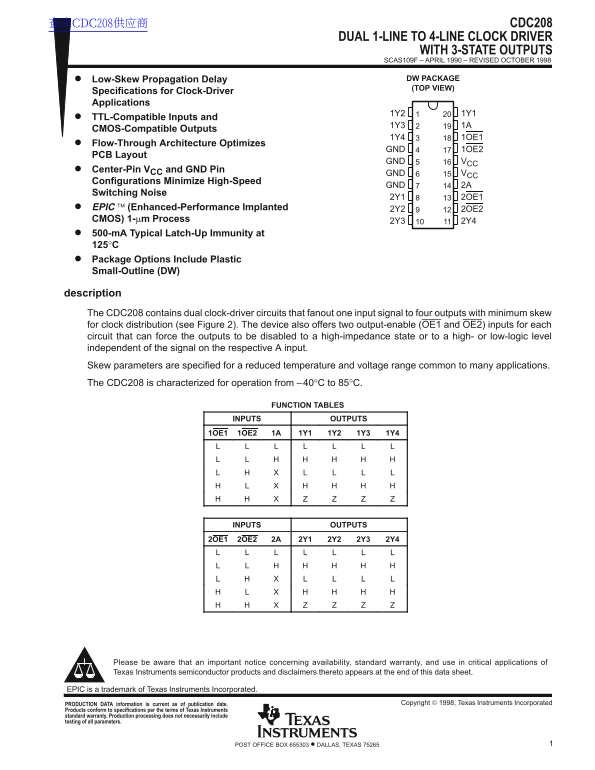

Page 1 Text Content
查询CDC208供应商 CDC208
DUAL 1-LINE TO 4-LINE CLOCK DRIVER
WITH 3-STATE OUTPUTS SCAS109F – APRIL 1990 – REVISED OCTOBER 1998 Low-Skew Propagation Delay DW PACKAGE (TOP VIEW)
Specifications for Clock-Driver Applications
TTL-Compatible Inputs and
CMOS-Compatible Outputs
1Y4 1OE1
Flow-Through Architecture Optimizes
GND 1OE2
PCB Layout
GND VCC
Center-Pin VCC and GND Pin
GND VCC
Configurations Minimize High-Speed
GND 2A
Switching Noise
2Y1 2OE1
EPIC (Enhanced-Performance Implanted 2Y2 2OE2 CMOS) 1-µm Process 2Y3 2Y4 500-m A Typical Latch-Up Immunity at 125°C Package Options Include Plastic Small-Outline (DW)
description The CDC208 contains dual clock-driver circuits that fanout one input signal to four outputs with minimum skew for clock distribution (see Figure 2). The device also offers two output-enable (OE1 and OE2) inputs for each circuit that can force the outputs to be disabled to a high-impedance state or to a high- or low-logic level independent of the signal on the respective A input. Skew parameters are specified for a reduced temperature and voltage range common to many applications. The CDC208 is characterized for operation from –40°C to 85°C.
FUNCTION TABLES
INPUTS OUTPUTS 1OE1 1OE2 1A 1Y1 1Y2 1Y3 1Y4
INPUTS OUTPUTS 2OE1 2OE2 2A 2Y1 2Y2 2Y3 2Y4
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
EPIC is a trademark of Texas Instruments Incorporated.
Copyright 1998, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments CDC208 Data Manual1 Specification
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 10 |
| File Size | 138.84 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What does the CDC208 use for efficient clock distribution?
It uses a flow-through architecture to optimize GND and minimize high-speed current bounce while fanning one input signal to four outputs.
How can I manually control or disable the outputs?
Use the dedicated two output-enable (OE1 and OE2) inputs; they can force signals to a high-impedance state or defined logic level.
What is the reliable operating temperature range for this chip?
The CDC208 is specifically characterized for stable operation across temperatures from –40°C to 85°C.
Which logic interfaces are supported by the device?
It supports TTL-compatible inputs and CMOS-compatible outputs, ensuring broad integration options.
