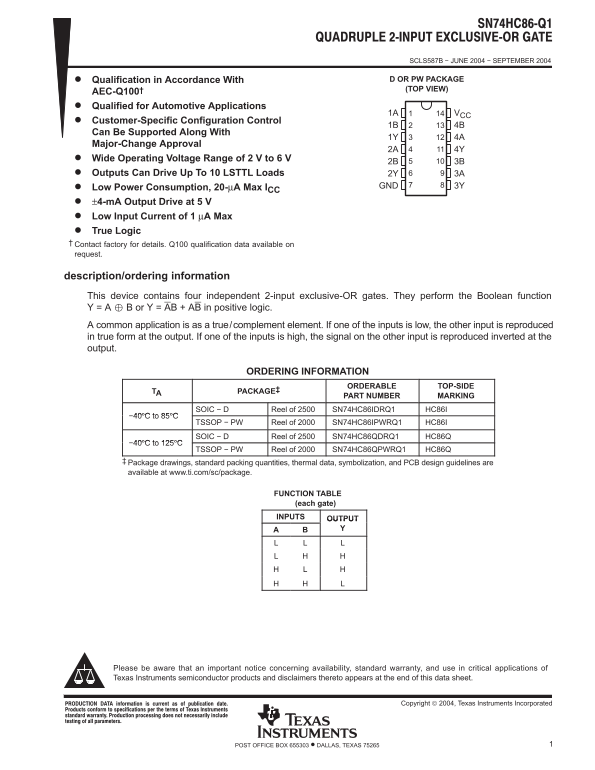

Texas Instruments SN74HC86-Q1 Data Handbook/Specifications manual

SCLS587B − JUNE 2004 − SEPTEMBER 2004

Qualification in Accordance With D OR PW PACKAGE (TOP VIEW)

AEC-Q100† Qualified for Automotive Applications

1A VCC

Customer-Specific Configuration Control

Can Be Supported Along With

Major-Change Approval

Wide Operating Voltage Range of 2 V to 6 V

Outputs Can Drive Up To 10 LSTTL Loads 2Y 3A

Low Power Consumption, 20-µA Max ICC GND 3Y

±4-m A Output Drive at 5 V Low Input Current of 1 µA Max True Logic Contact factory for details. Q100 qualification data available on request.

description/ordering information This device contains four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A
B or Y = AB + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE‡

PART NUMBER MARKING

SOIC − D Reel of 2500 SN74HC86IDRQ1 HC86I

−40°C to 85°C

TSSOP − PW Reel of 2000 SN74HC86IPWRQ1 HC86I SOIC − D Reel of 2500 SN74HC86QDRQ1 HC86Q

−40°C to 125°C

TSSOP − PW Reel of 2000 SN74HC86QPWRQ1 HC86Q

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

FUNCTION TABLE (each gate) INPUTS OUTPUT

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
