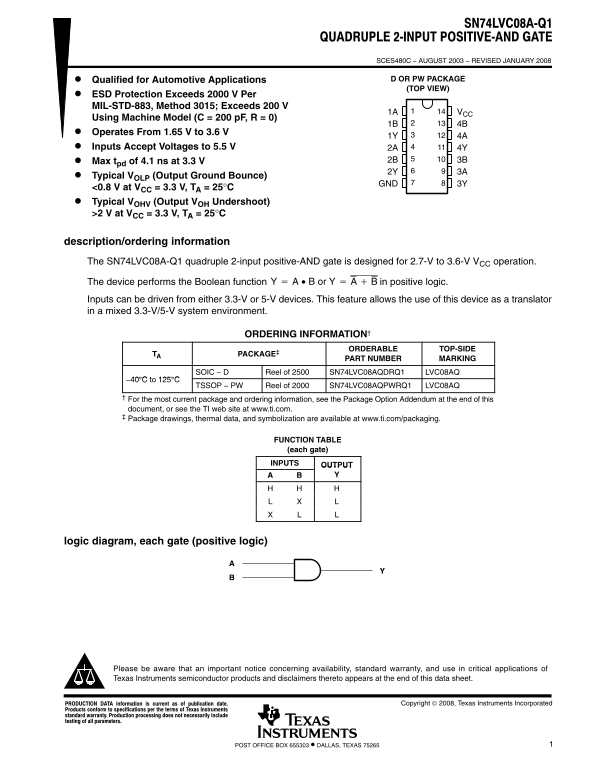

Texas Instruments SN74LVC08A-Q1 Data Sheet
Summary
Equip your digital circuits with the SN74LVC08A-Q1, a high-performance quadruple 2-input positive-AND Gate logic IC. Designed for engineers needing reliable mixed-voltage solutions, this chip seamlessly interfaces in environments running both 3.3V and 5V signals. The included manual provides comprehensive technical specifications, covering operating parameters, automotive qualification details, ESD protection ratings, and recommended circuit implementation guidelines, making it ideal for robust industrial or demanding embedded systems applications.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 10 |
| File Size | 232.02 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Can this gate translate signals between 3.3V and 5V systems?
Yes, it functions as a translator, accepting inputs from both 3.3-V or 5-V devices.
What is the required operating voltage range for optimal function?
The device is designed to operate from 2.7 V up to 3.6 V.
Are there specific packages and reel quantities available for ordering?
Available options include SOIC-D (reel of 2500) and TSSOP-PW (reel of 2000).
Is this device suitable for critical military or automotive applications?
Use in aerospace/military environments requires it to be specifically designated by TI; buyers using non-designated products assume all risk.
