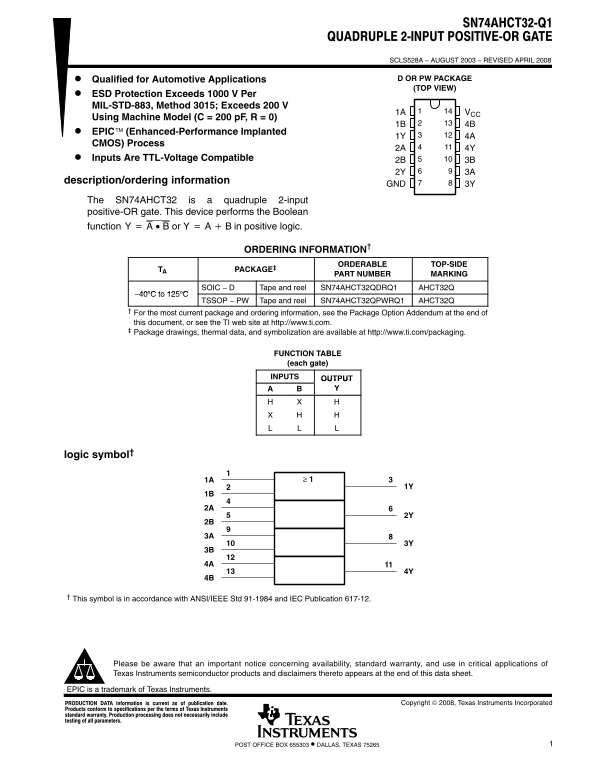

Texas Instruments SN74AHCT32-Q1 Data Sheet
Summary
This data sheet details the SN74AHCT32, a quadruple 2-input positive-OR gate built with enhanced CMOS technology. It functions as a reliable digital logic component, accepting TTL-voltage compatible inputs for basic Boolean OR operations. The manual provides comprehensive application guidance, including detailed electrical characteristics, absolute maximum ratings, and operational parameters suitable for demanding environments, such as automotive uses. Ideal for electronics engineers designing high-reliability circuits requiring robust functionality in commercial or industrial systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 9 |
| File Size | 241.22 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for this device?
The recommended operating free-air temperature range is -40°C to 125°C.
How must I handle unused inputs on the SN74AHCT32?
All unused inputs must be held at VCC or GND to ensure proper device operation.
Does this chip support TTL voltage compatibility?
Yes, the inputs are TTL-Voltage Compatible.
What is the maximum continuous output current (IO)?
The continuous output current (I_O) is specified as ±25 mA.
