Texas Instruments TL1051 Data Handbook/Specifications manual
Summary
The TL1051 is an analog video preprocessor integrated circuit designed for enhancing three channels of data from TI CCD image sensors. This comprehensive guide details the unit's core functions, including automatic gain control (AGC), white balance, signal clamping, and multiplexing capabilities for RGB to Y (luminance) conversion. Essential reading for engineers designing systems that require high-quality video input processing, ensuring optimal performance in challenging lighting conditions.

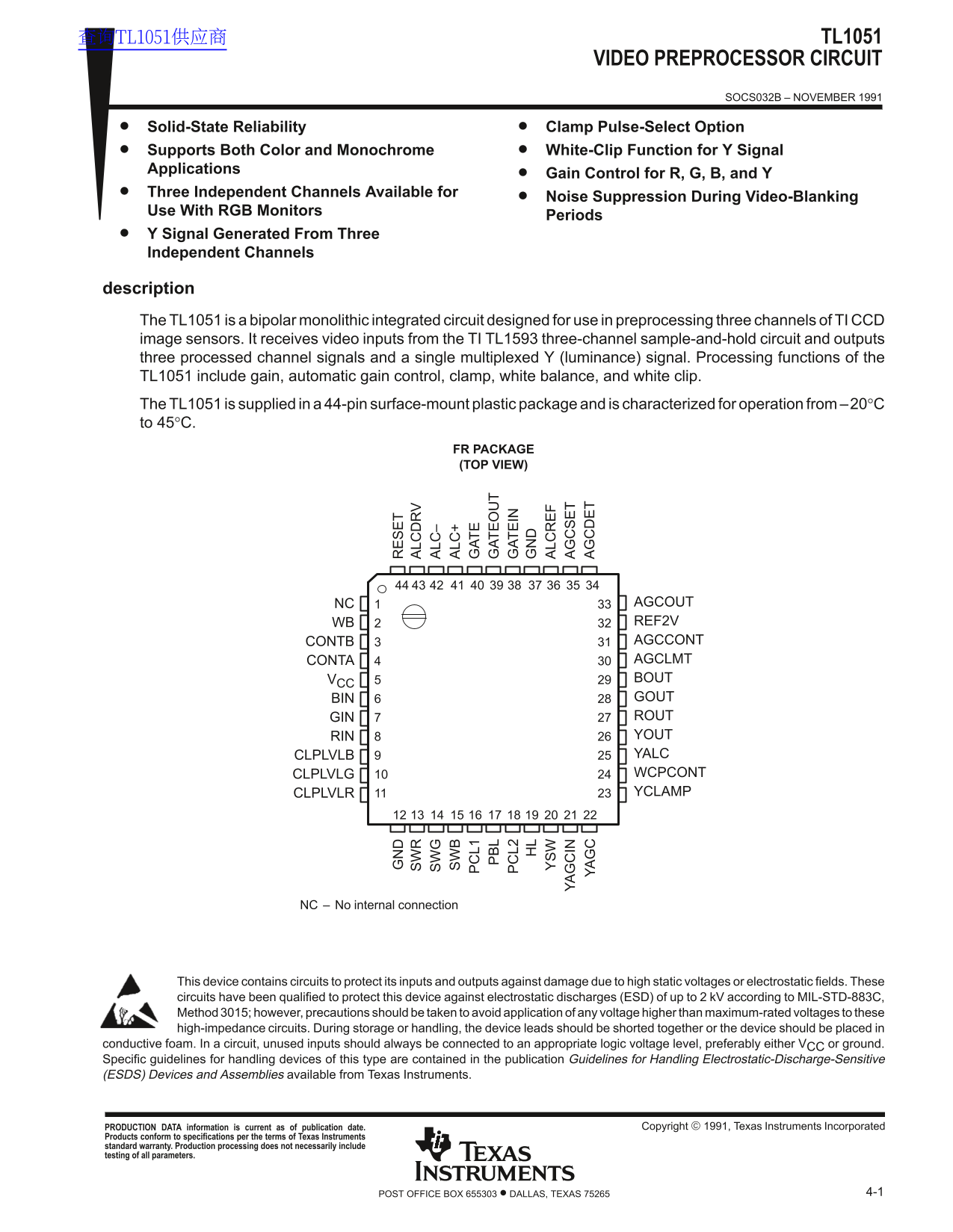

Page 1 Text Content
查询TL1051供应商 TL1051
VIDEO PREPROCESSOR CIRCUIT
SOCS032B – NOVEMBER 1991
Solid-State Reliability Clamp Pulse-Select Option Supports Both Color and Monochrome White-Clip Function for Y Signal Applications
Gain Control for R, G, B, and Y
Three Independent Channels Available for
Noise Suppression During Video-Blanking
Use With RGB Monitors
Periods
Y Signal Generated From Three Independent Channels
description The TL1051 is a bipolar monolithic integrated circuit designed for use in preprocessing three channels of TI CCD image sensors. It receives video inputs from the TI TL1593 three-channel sample-and-hold circuit and outputs three processed channel signals and a single multiplexed Y (luminance) signal. Processing functions of the TL1051 include gain, automatic gain control, clamp, white balance, and white clip. The TL1051 is supplied in a 44-pin surface-mount plastic package and is characterized for operation from –20°C
to 45°C.
FR PACKAGE
(TOP VIEW)
L2 IN
NC AGCOUT WB REF2V CONTB AGCCONT CONTA AGCLMT VCC BOUT BIN GOUT GIN ROUT RIN YOUT CLPLVLB YALC CLPLVLG WCPCONT CLPLVLR YCLAMP
NC – No internal connection
This device contains circuits to protect its inputs and outputs against damage due to high static voltages or electrostatic fields. These circuits have been qualified to protect this device against electrostatic discharges (ESD) of up to 2 k V according to MIL-STD-883C, Method 3015; however, precautions should be taken to avoid application of any voltage higher than maximum-rated voltages to these high-impedance circuits. During storage or handling, the device leads should be shorted together or the device should be placed in
conductive foam. In a circuit, unused inputs should always be connected to an appropriate logic voltage level, preferably either VCC or ground. Specific guidelines for handling devices of this type are contained in the publication Guidelines for Handling Electrostatic-Discharge-Sensitive (ESDS) Devices and Assemblies available from Texas Instruments.
PRODUCTION DATA information is current as of publication date. Copyright 1991, Texas Instruments Incorporated
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
4-1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
