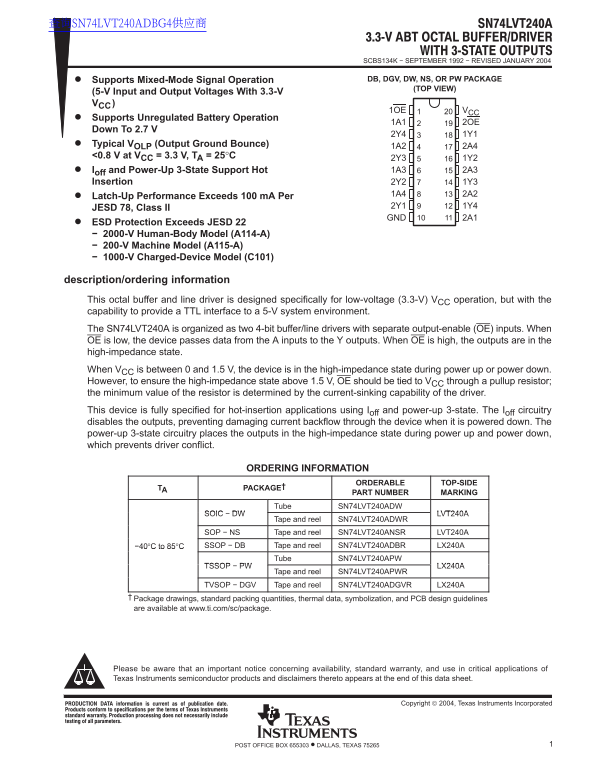

Texas Instruments SN74LVT240A Data Handbook / Specifications Guide

查询SN74LVT240ADBG4供应商

SCBS134K − SEPTEMBER 1992 − REVISED JANUARY 2004

Supports Mixed-Mode Signal Operation DB, DGV, DW, NS, OR PW PACKAGE

(TOP VIEW)

(5-V Input and Output Voltages With 3.3-V VCC)

1OE VCC

Supports Unregulated Battery Operation

1A1 2OE

Down To 2.7 V

Typical VOLP (Output Ground Bounce) 1A2 2A4 <0.8 V at VCC = 3.3 V, TA = 25°C

2Y3 1Y2 Ioff and Power-Up 3-State Support Hot 1A3 2A3

Insertion 2Y2 1Y3

Latch-Up Performance Exceeds 100 m A Per

JESD 78, Class II 2Y1 1Y4 GND 2A1

ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101)

description/ordering information This octal buffer and line driver is designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The SN74LVT240A is organized as two 4-bit buffer/line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. When VCC is between 0 and 1.5 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

Tube SN74LVT240ADW

SOIC − DW LVT240A

Tape and reel SN74LVT240ADWR

SOP − NS Tape and reel SN74LVT240ANSR LVT240A −40°C to 85°C SSOP − DB Tape and reel SN74LVT240ADBR LX240A

Tube SN74LVT240APW

TSSOP − PW LX240A

Tape and reel SN74LVT240APWR

TVSOP − DGV Tape and reel SN74LVT240ADGVR LX240A

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
