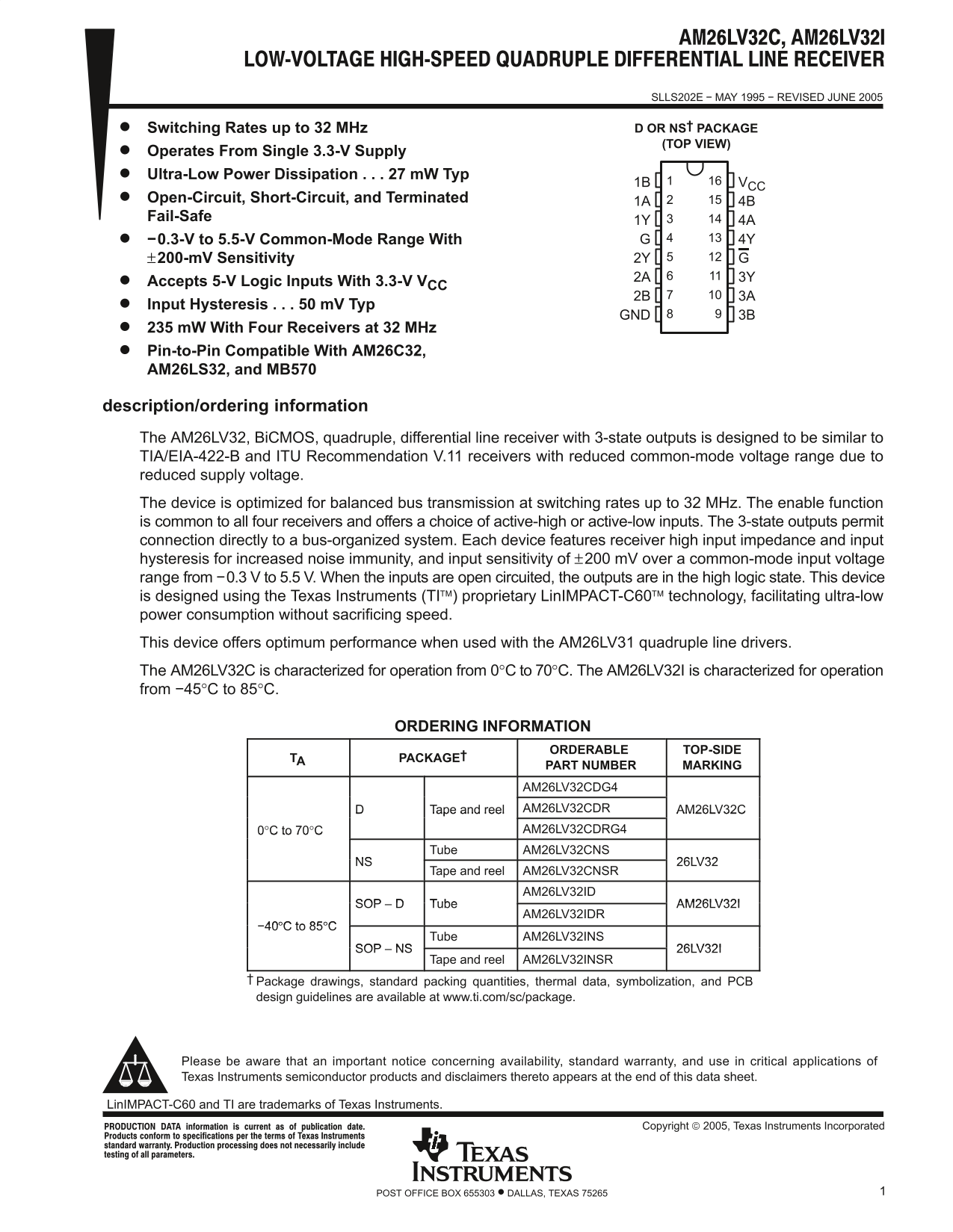

Texas Instruments AM26LV32C, AM26LV32I Data Handbook & Specifications
Summary
Enhance your data communications with the AM26LV32, a high-performance biCMOS quadruple differential line receiver. Optimized for balanced bus transmission up to 32 MHz, this device ensures TIA/EIA compatibility while delivering ultra-low power consumption and robust three-state outputs for system integration. This technical manual provides essential engineering resources including detailed operational pin diagrams, comprehensive electrical specifications, input/output range data, selection guides (for temperature grade and package), and complete ordering information needed for reliable product design and implementation by electrical engineers.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 22 |
| File Size | 664.58 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What makes this device suitable for bus-organized systems?
It features 3-state outputs, which allow direct connection to a bus-organized system.
Does the AM26LV32 maintain compatibility with older parts?
Yes, it is pin-to-pin compatible with AM26C32, AM26LS32, and MB570.
What are the input voltage specifications and noise immunity?
It has 50 mV Typ input hysteresis and handles a common-mode range from −0.3 V to 5.5 V.
Can this component be used in automotive or military environments?
Use is restricted; products must be specifically designated by TI as compliant with relevant standards (e.g., ISO/TS 16949).
