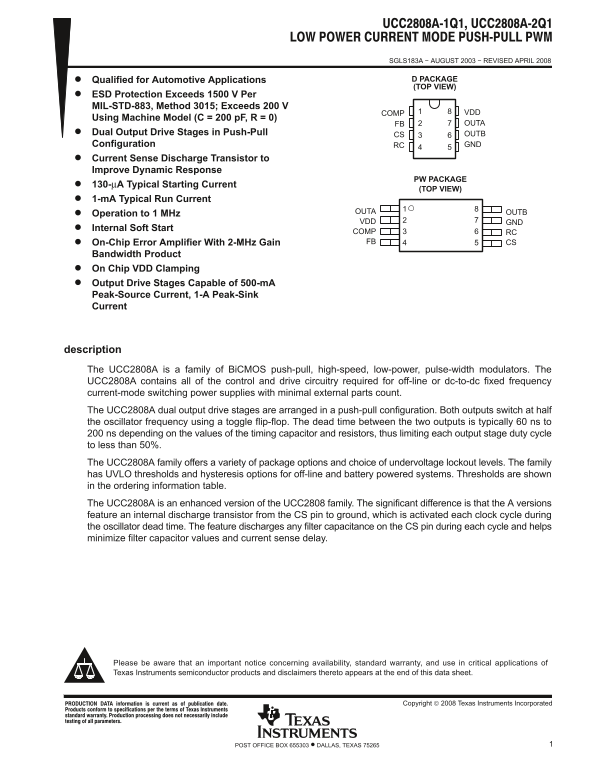

Texas Instruments UCC2808A-1Q1, UCC2808A-2Q1 Data Handbook
Summary
The UCC2808A is a high-performance family of BiCMOS pulse-width modulators designed for building compact and efficient off-line and DC-to-DC fixed frequency switching power supplies. It provides integrated control, drive circuitry, and sophisticated push-pull output stages with an advanced discharge transistor to minimize component count and optimize dynamic response. Ideal for electrical engineers requiring reliable power solutions, the module features auto reset and clamp functionalities, making it a top choice for automotive-qualified and demanding modern power electronics applications.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 12 |
| File Size | 266.25 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What unique feature does the 'A' version of this modulator include?
The A versions feature an internal discharge transistor on the CS pin, which helps minimize current sense delay.
What are the peak sink and source currents available for OUTA/OUTB?
The outputs can handle a peak sink current of 1.0 A and a peak source current of -0.5 A.
How is the dead time controlled between the two outputs?
Dead time is typically 60 ns to 200 ns, depending on the values selected for the timing capacitor and resistors.
Can I use this device in automotive applications?
Only if the specific UCC2808A product is designated by TI as compliant with ISO/TS 16949 requirements.
