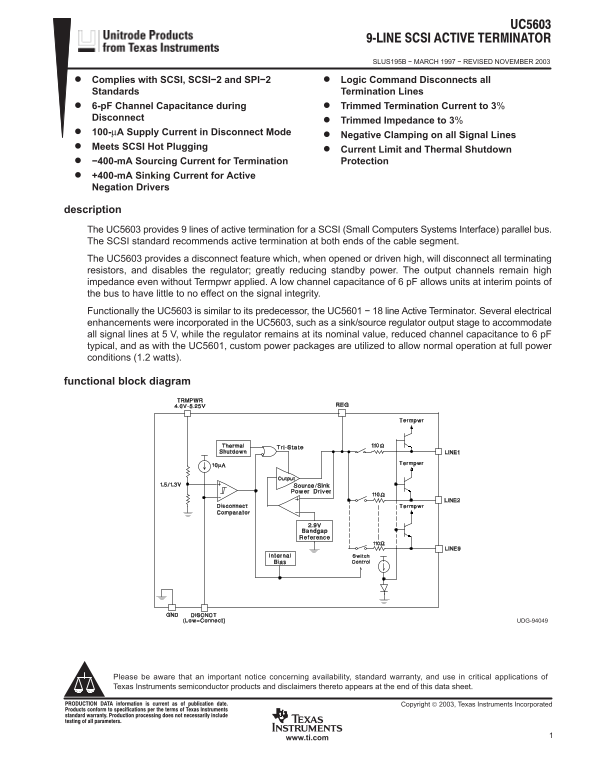

Texas Instruments UC5603 Data Handbook

SLUS195B − MARCH 1997 − REVISED NOVEMBER 2003

Complies with SCSI, SCSI−2 and SPI−2 Logic Command Disconnects all Standards Termination Lines 6-p F Channel Capacitance during Trimmed Termination Current to 3% Disconnect

Trimmed Impedance to 3%

100-µA Supply Current in Disconnect Mode

Negative Clamping on all Signal Lines

Meets SCSI Hot Plugging

Current Limit and Thermal Shutdown −400-m A Sourcing Current for Termination Protection

+400-m A Sinking Current for Active Negation Drivers

description The UC5603 provides 9 lines of active termination for a SCSI (Small Computers Systems Interface) parallel bus. The SCSI standard recommends active termination at both ends of the cable segment. The UC5603 provides a disconnect feature which, when opened or driven high, will disconnect all terminating resistors, and disables the regulator; greatly reducing standby power. The output channels remain high impedance even without Termpwr applied. A low channel capacitance of 6 p F allows units at interim points of the bus to have little to no effect on the signal integrity. Functionally the UC5603 is similar to its predecessor, the UC5601 − 18 line Active Terminator. Several electrical enhancements were incorporated in the UC5603, such as a sink/source regulator output stage to accommodate all signal lines at 5 V, while the regulator remains at its nominal value, reduced channel capacitance to 6 p F typical, and as with the UC5601, custom power packages are utilized to allow normal operation at full power conditions (1.2 watts).

functional block diagram

UDG-94049
