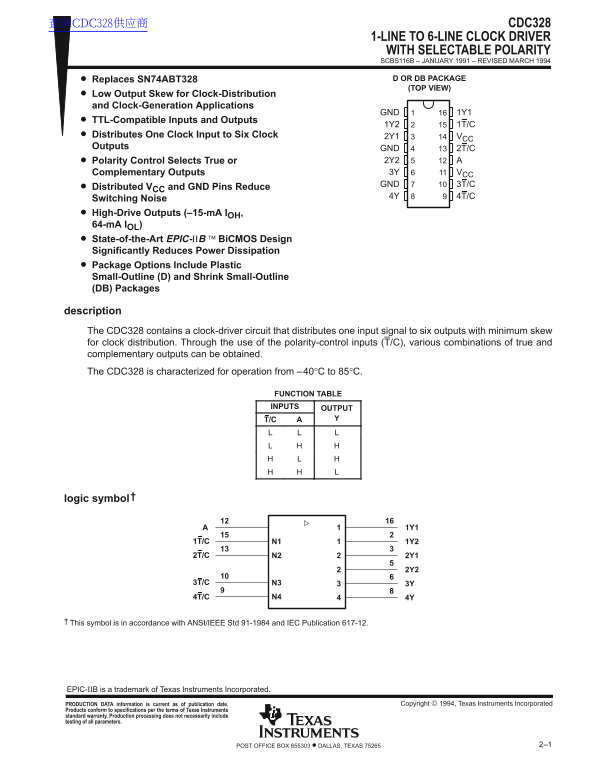

1-LINE TO 6-LINE CLOCK DRIVER WITH SELECTABLE POLARITY SCBS116B – JANUARY 1991 – REVISED MARCH 1994 Replaces SN74ABT328 D OR DB PACKAGE (TOP VIEW)

Low Output Skew for Clock-Distribution and Clock-Generation Applications

GND 1Y1

TTL-Compatible Inputs and Outputs

Distributes One Clock Input to Six Clock 2Y1 VCC Outputs GND 2T/C

Polarity Control Selects True or 2Y2 Complementary Outputs 3Y VCC GND 3T/C

Distributed VCC and GND Pins Reduce

Switching Noise High-Drive Outputs (–15-m A IOH, 64-m A IOL) State-of-the-Art EPIC-ΙΙB  Bi CMOS Design Significantly Reduces Power Dissipation Package Options Include Plastic Small-Outline (D) and Shrink Small-Outline (DB) Packages

description The CDC328 contains a clock-driver circuit that distributes one input signal to six outputs with minimum skew for clock distribution. Through the use of the polarity-control inputs (T/C), various combinations of true and complementary outputs can be obtained. The CDC328 is characterized for operation from –40°C to 85°C.

FUNCTION TABLE INPUTS OUTPUT T/C

logic symbol†

This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.
