The TPIC5323L is a robust, gate-protected 3-channel DMOS power array featuring electrically isolated N-channel transistors. This component provides reliable logic-level switching and integrated high-current zener diodes, ensuring superior overstress and ESD protection (up to 4000V). It offers an ideal solution for powering complex digital systems requiring multiple independent, isolated channels. The comprehensive datasheet covers essential electrical characteristics, detailed operating parameters, and absolute maximum ratings, making it a critical resource for hardware engineers designing high-reliability industrial and consumer electronic circuits.

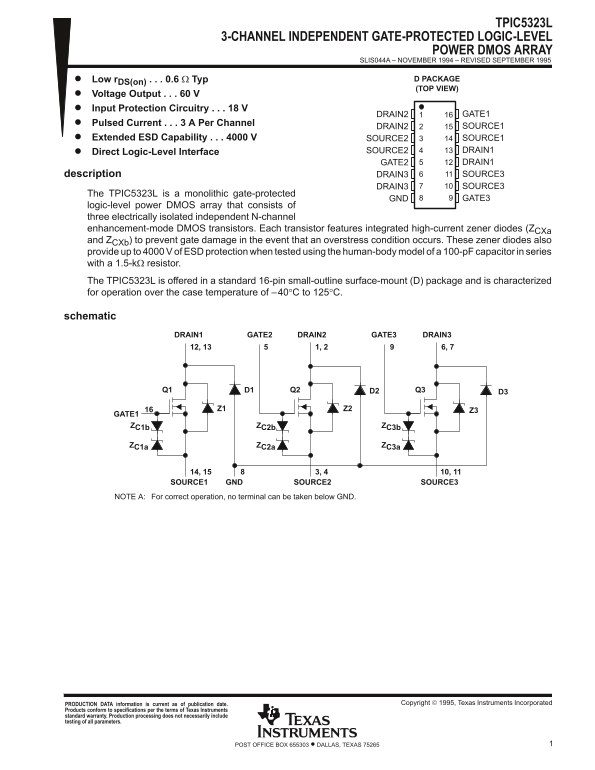

Page 1 Text Content
TPIC5323L
3-CHANNEL INDEPENDENT GATE-PROTECTED LOGIC-LEVEL
POWER DMOS ARRAY
SLIS044A – NOVEMBER 1994 – REVISED SEPTEMBER 1995
Low r DS(on) 0.6 Ω Typ D PACKAGE (TOP VIEW)
Voltage Output 60 V Input Protection Circuitry 18 V
DRAIN2 GATE1
Pulsed Current 3 A Per Channel
DRAIN2 SOURCE1
Extended ESD Capability 4000 V SOURCE2 SOURCE1
Direct Logic-Level Interface SOURCE2 DRAIN1 GATE2 DRAIN1 description DRAIN3 SOURCE3 DRAIN3 SOURCE3
The TPIC5323L is a monolithic gate-protected
GND GATE3
logic-level power DMOS array that consists of three electrically isolated independent N-channel enhancement-mode DMOS transistors. Each transistor features integrated high-current zener diodes (ZCXa and ZCXb) to prevent gate damage in the event that an overstress condition occurs. These zener diodes also provide up to 4000 V of ESD protection when tested using the human-body model of a 100-p F capacitor in series with a 1.5-kΩ resistor. The TPIC5323L is offered in a standard 16-pin small-outline surface-mount (D) package and is characterized for operation over the case temperature of –40°C to 125°C.
schematic
DRAIN1 DRAIN2 GATE3 DRAIN3GATE2
GATE1
ZC1b ZC2b ZC3b
ZC1a ZC2a ZC3a
14, 15 3, 4 10, 11 SOURCE1 GND SOURCE2 SOURCE3
NOTE A: For correct operation, no terminal can be taken below GND.
Copyright 1995, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments TPIC5323L Data Handbook/Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 11 |
| File Size | 194.82 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum ESD protection voltage offered by this device?
It provides up to 4000 V of ESD protection using specific testing methods.
Are there limitations on running certain terminals relative to ground (GND)?
No, according to NOTE A, no terminal can be taken below GND for correct operation.
What is the recommended operating temperature range?
The product is characterized for operation over a case temperature range of –40°C to 125°C.
How resistant are the DMOS transistors to gate damage?
They feature integrated high-current zener diodes ($Z_{C ext{a}}$ and $Z_{C ext{b}}$) to prevent gate damage during overstress conditions.
