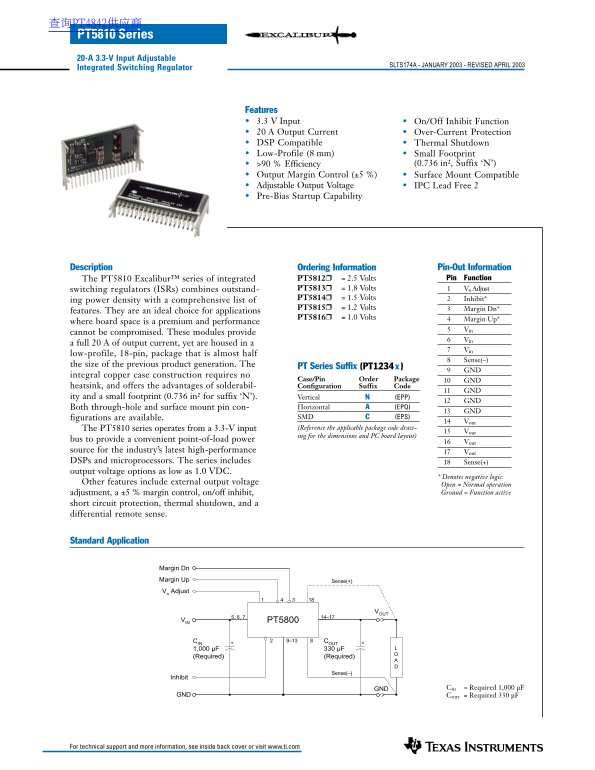

查询PT4842供应商 PT5810 Series 20-A 3.3-V Input Adjustable
SLTS174A - JANUARY 2003 - REVISED APRIL 2003
Integrated Switching Regulator
Features 3.3 V Input On/Off Inhibit Function 20 A Output Current Over-Current Protection DSP Compatible Thermal Shutdown Low-Profile (8 mm) Small Footprint
>90 % Efficiency (0.736 in², Suffix ‘N’)
Output Margin Control (±5 %) Surface Mount Compatible Adjustable Output Voltage IPC Lead Free 2 Pre-Bias Startup Capability
Description Ordering Information Pin-Out Information
The PT5810 Excalibur™ series of integrated PT5812 = 2.5 Volts Pin Function
switching regulators (ISRs) combines outstand- PT5813 = 1.8 Volts Vo Adjust PT5814 = 1.5 Volts Inhibit*
ing power density with a comprehensive list of
PT5815 = 1.2 Volts Margin Dn*
features. They are an ideal choice for applications
PT5816 = 1.0 Volts Margin Up*
where board space is a premium and performance
cannot be compromised. These modules provide
a full 20 A of output current, yet are housed in a
low-profile, 18-pin, package that is almost half
Sense(–)
the size of the previous product generation. The PT Series Suffix (PT1234x)
integral copper case construction requires no
Case/Pin Order Package GND heatsink, and offers the advantages of solderabil- Configuration Suffix Code
ity and a small footprint (0.736 in² for suffix ‘N’). Vertical (EPP)
Both through-hole and surface mount pin con- Horizontal (EPQ)
figurations are available. SMD (EPS)
The PT5810 series operates from a 3.3-V input (Reference the applicable package code draw-
ing for the dimensions and PC board layout)
bus to provide a convenient point-of-load power
source for the industry’s latest high-performance Vout DSPs and microprocessors. The series includes Sense(+) output voltage options as low as 1.0 VDC.
* Denotes negative logic:
Other features include external output voltage
Open = Normal operation adjustment, a ±5 % margin control, on/off inhibit, Ground = Function active
short circuit protection, thermal shutdown, and a differential remote sense.
Standard Application
Margin Dn Margin Up Sense(+)
Vo Adjust
VIN PT5800
CIN 9–13 COUT
1,000 µF 330 µF (Required) (Required)
Sense(–)
Inhibit
GND Cin = Required 1,000 µF
GND Cout = Required 330 µF
