Texas Instruments SN54ALS244C SN54AS244A SN74ALS244C SN74AS244A Data Manual

Summary

These octal buffers and line drivers are specialized components designed to enhance the performance and signal integrity of digital systems, particularly for memory address buses and clock lines requiring 3-state output capability. This manual serves as a comprehensive technical resource, detailing electrical characteristics, operating limits, and functional specifications for system integration. It is essential for electronics engineers and circuit designers building high-reliability digital circuitry.

📄 Preview PAGE OF 18

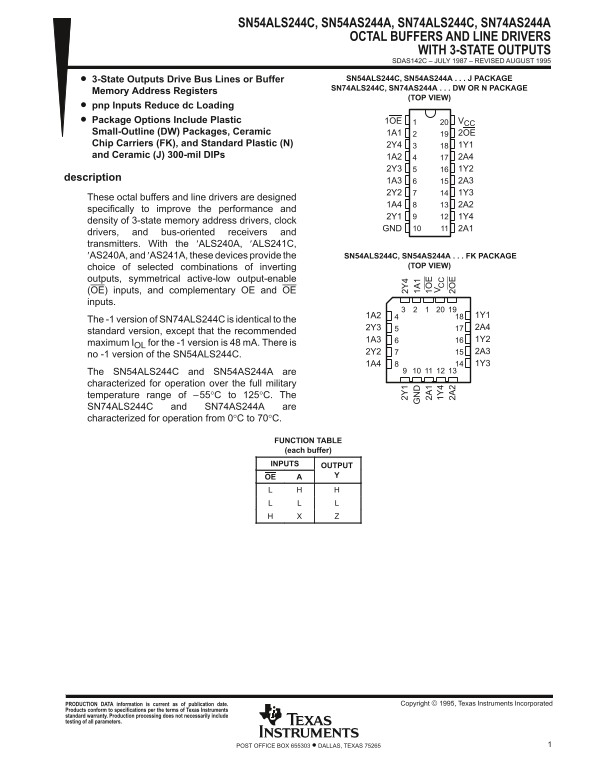

Page 1 Text Content

SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A

OCTAL BUFFERS AND LINE DRIVERS

WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995

3-State Outputs Drive Bus Lines or Buffer SN54ALS244C, SN54AS244A J PACKAGE SN74ALS244C, SN74AS244A DW OR N PACKAGE

Memory Address Registers

(TOP VIEW)

pnp Inputs Reduce dc Loading Package Options Include Plastic 1OE VCC Small-Outline (DW) Packages, Ceramic 1A1 2OE Chip Carriers (FK), and Standard Plastic (N) 2Y4 1Y1 and Ceramic (J) 300-mil DIPs 1A2 2A4

description

These octal buffers and line drivers are designed

specifically to improve the performance and

density of 3-state memory address drivers, clock

GND 2A1

drivers, and bus-oriented receivers and transmitters. With the ′ALS240A, ′ALS241C, ′AS240A, and ′AS241A, these devices provide the SN54ALS244C, SN54AS244A FK PACKAGE

choice of selected combinations of inverting (TOP VIEW)

outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs.

The -1 version of SN74ALS244C is identical to the

standard version, except that the recommended

maximum IOL for the -1 version is 48 m A. There is

no -1 version of the SN54ALS244C.

The SN54ALS244C and SN54AS244A are characterized for operation over the full military temperature range of –55°C to 125°C. The

SN74ALS244C and SN74AS244A are 2Y 2Y

characterized for operation from 0°C to 70°C. 1A

FUNCTION TABLE 1Y (each buffer)

INPUTS OUTPUT OE

PRODUCTION DATA information is current as of publication date. Copyright  1995, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments SN54ALS244C SN54AS244A SN74ALS244C SN74AS244A Data Manual

Page 1 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 3-State Outputs Drive Bus Lines or Buffer SN54ALS244C, S...
Page 2 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 logic symbol† logic diagram (positive logic) 1OE EN 2OE ...
Page 3 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 recommended operating conditions SN54ALS244C SN74ALS244C...
Page 4 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 switching characteristics (see Figure 1) VCC = 4.5 V to ...
Page 5 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 electrical characteristics over recommended operating fr...
Page 6 SN54ALS244C, SN54AS244A, SN74ALS244C, SN74AS244A OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS SDAS142C – JULY 1987 – REVISED AUGUST 1995 PARAMETER MEASUREMENT INFORMATION SERIES 54ALS/74ALS AND...
Page 7 PACKAGE OPTION ADDENDUM www.ti.com 26-Sep-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty 5962-86839012A ACTIVE...
Page 8 PACKAGE OPTION ADDENDUM www.ti.com 26-Sep-2005 Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty SN74ALS244CNSR ACTIVE SO NS Green (Ro HS CU...
Page 9 PACKAGE OPTION ADDENDUM www.ti.com 26-Sep-2005 information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI ...
Page 12 MECHANICAL DATA MLCC006B – OCTOBER 1996 FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER 28 TERMINAL SHOWN ANO. OF TERMINALS MIN MINMAX MAX B SQ 0.640 0.660 0.495 0.560 NOTES: A. All linear dimensions ar...
Page 16 MECHANICAL DATA MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001 DB (R-PDSO-G**) PLASTIC SMALL-OUTLINE 28 PINS SHOWN Gage Plane Seating Plane 2,00 MAX 0,05 MIN 0,10 PINS ** DIM A MAX 6,506,50 7,50 8,50...
Page 17 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...
Page 18 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...

Manual Details

Brand Texas Instruments
Pages 18
File Size 512.06 KB
Published June 15, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the operating temperature range for the SN54ALS244C?

The SN54ALS244C is characterized for operation over the full military temperature range of –55°C to 125°C.

Are there different reliability ratings based on temperature?

Yes, the SN74ALS244C and SN74AS244A are only characterized for a lower operating range of 0°C to 70°C.

What does this device specifically improve performance in?

These octal buffers and line drivers were designed to improve the density and performance of 3-state memory address drivers, clock dividers, etc.

What is the recommended maximum current for a -1 version?

The recommended maximum I for the -1 version is 48 mA when VCC is between 4.75 V and 5.25 V.
