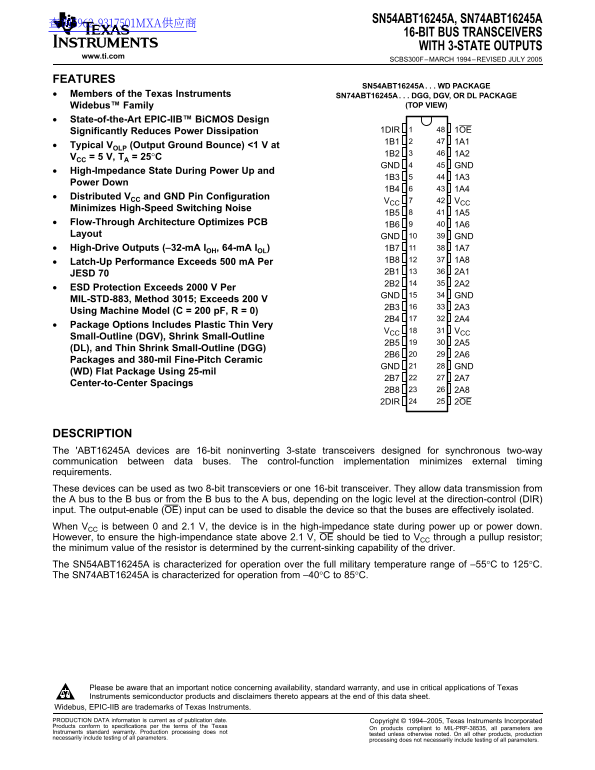

SN54ABT16245A, SN74ABT16245A
查询5962-9317501MXA供应商
16-BIT BUS TRANSCEIVERS
WITH 3-STATE OUTPUTS
www.ti.com
SCBS300F–MARCH 1994–REVISED JULY
FEATURES
SN54ABT16245A. WD PACKAGE
Members of the Texas Instruments SN74ABT16245A. DGG, DGV, OR DL PACKAGE
Widebus™ Family (TOP VIEW)
State-of-the-Art EPIC-IIB™ Bi CMOS Design
Significantly Reduces Power Dissipation 1DIR 1OE
Typical VOLP (Output Ground Bounce) <1 at
VCC V, TA 25°C
GND GND
High-Impedance State During Power Up and
Power Down
Distributed VCC and GND Pin Configuration
VCC VCC
Minimizes High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB
Layout
GND GND
High-Drive Outputs (–32-m A IOH, 64-m A IOL) 1B7 1A7
Latch-Up Performance Exceeds m A Per
ESD Protection Exceeds Per
GND GND
MIL-STD-883, Method 3015; Exceeds
Using Machine Model (C p F, 0)
Package Options Includes Plastic Thin Very
VCC VCC
Small-Outline (DGV), Shrink Small-Outline
(DL), and Thin Shrink Small-Outline (DGG)
Packages and 380-mil Fine-Pitch Ceramic
GND GND
(WD) Flat Package Using 25-mil
Center-to-Center Spacings
2B8 2A8 2DIR 2OE
DESCRIPTION
The 'ABT16245A devices are 16-bit noninverting 3-state transceivers designed for synchronous two-way
communication between data buses. The control-function implementation minimizes external timing
requirements.
These devices can be used as two 8-bit transceviers or one 16-bit transceiver. They allow data transmission from
the bus to the bus or from the bus to the bus, depending on the logic level at the direction-control (DIR)
input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
When VCC is between and 2.1 V, the device is in the high-impedance state during power up or power down.
However, to ensure the high-impendance state above 2.1 V, OE should be tied to VCC through pullup resistor;
the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT16245A is characterized for operation over the full military temperature range of –55°C to 125°C.
The SN74ABT16245A is characterized for operation from –40°C to 85°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Widebus, EPIC-IIB are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date. Copyright 1994–2005, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
On products compliant to MIL-PRF-38535, all parameters are
Instruments standard warranty. Production processing does not
tested unless otherwise noted. On all other products, production
necessarily include testing of all parameters.
processing does not necessarily include testing of all parameters.
