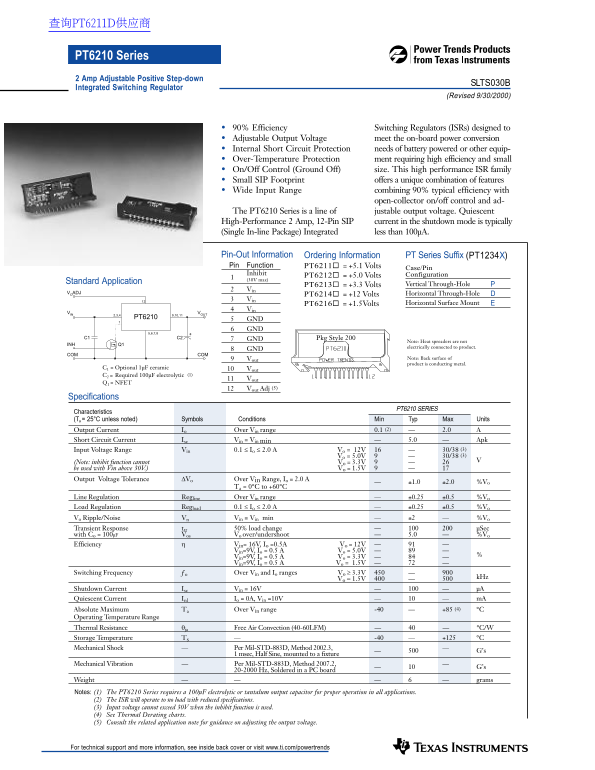

PT6210 Series

2 Amp Adjustable Positive Step-down

SLTS030B

Integrated Switching Regulator

(Revised 9/30/2000)

90% Efficiency Switching Regulators (ISRs) designed to Adjustable Output Voltage meet the on-board power conversion Internal Short Circuit Protection needs of battery powered or other equip- Over-Temperature Protection ment requiring high efficiency and small On/Off Control (Ground Off) size. This high performance ISR family Small SIP Footprint offers a unique combination of features Wide Input Range combining 90% typical efficiency with

open-collector on/off control and ad-

The PT6210 Series is a line of justable output voltage. Quiescent High-Performance 2 Amp, 12-Pin SIP current in the shutdown mode is typically (Single In-line Package) Integrated less than 100µA.

Pin-Out Information Ordering Information PT Series Suffix (PT1234X) Pin Function PT6211 = +5.1 Volts

Case/Pin

Inhibit Configuration

PT6212 = +5.0 Volts

(30V max)

Standard Application

PT6213 = +3.3 Volts Vertical Through-Hole

VOADJ Horizontal Through-Hole

PT6214 = +12 Volts

PT6216 = +1.5Volts Horizontal Surface Mount

VIN VOUT

PT62102,3,4 GND

C1 C2 GND Pkg Style 200

Note: Heat spreaders are not

INH Q1

electrically connected to product.

COM COM

Vout Note: Back surface of product is conducting metal.

C1 = Optional 1µF ceramic Vout

C2 = Required 100µF electrolytic (1)

Q1 = NFET

Vout Adj (5)

Specifications

PT6210 SERIES

Characteristics (Ta = 25°C unless noted) Symbols Conditions Min Typ Max Units Output Current Io Over Vin range 0.1 (2) 2.0 Short Circuit Current Isc Vin = Vin min 5.0 Apk Input Voltage Range Vin 0.1 ≤ Io ≤ 2.0 A Vo = 12V 30/38 (3)

Vo = 5.0V 30/38 (3)

Vo = 3.3V V(Note: inhibit function cannot

be used with Vin above 30V.) Vo = 1.5V Output Voltage Tolerance ∆Vo Over Vin Range, Io = 2.0 A

±1.0 ±2.0 %Vo

Ta = 0°C to +60°C

Line Regulation Regline Over Vin range ±0.25 ±0.5 %Vo Load Regulation Regload 0.1 ≤ Io ≤ 2.0 A ±0.25 ±0.5 %Vo Vo Ripple/Noise Vn Vin = Vin min ±2 %Vo Transient Response ttr 50% load change µSec with Co = 100µF Vos Vo over/undershoot 5.0 %Vo Efficiency Vin= 16V, Io =0.5A Vo = 12V

Vin=9V, Io = 0.5 A Vo = 5.0V

Vo = 3.3V %Vin=9V, Io = 0.5 A

Vin=9V, Io = 0.5 A Vo = 1.5V

Switching Frequency ƒo Over Vin and Io ranges Vo ≥ 3.3V

k Hz Vo = 1.5V

Shutdown Current Isc Vin = 16V µA Quiescent Current Inl Io = 0A, Vin =10V m A Absolute Maximum Ta Over Vin range -40 +85 (4) °C Operating Temperature Range Thermal Resistance θja Free Air Convection (40-60LFM) °C/W Storage Temperature Ts -40 +125 °C Mechanical Shock Per Mil-STD-883D, Method 2002.3,

G’s1 msec, Half Sine, mounted to a fixture

Mechanical Vibration Per Mil-STD-883D, Method 2007.2,

G’s20-2000 Hz, Soldered in a PC board

Weight grams

Notes: (1) The PT6210 Series requires a 100µF electrolytic or tantalum output capacitor for proper operation in all applications. (2) The ISR will operate to no load with reduced specifications. (3) Input voltage cannot exceed 30V when the inhibit function is used. (4) See Thermal Derating charts. (5) Consult the related application note for guidance on adjusting the output voltage.

For technical support and more information, see inside back cover or visit www.ti.com/powertrends

Page Summary Contents For Texas Instruments PT6210 Series 2 Amp Adjustable Positive Step-down Integrated Switching Regulator Data Sheet User Manual

Page 1 查询PT6211D供应商 PT6210 Series 2 Amp Adjustable Positive Step-down SLTS030B Integrated Switching Regulator (Revised 9/30/2000) 90% Efficiency Switching Regulators (ISRs) designed to Adjustable Output Volt...
Page 2 PT6210 Series Typical Characteristics -(W at ts Io ut ps ip pl e- (m ffi ci en cy 2 Amp Adjustable Positive Step-down Integrated Switching Regulator PT6213, 3.3 VDC (See Note A) PT6212, 5.0 VDC (See N...
Page 3 Application Notes PT6100/6210/6300 Series Adjusting the Output Voltage of Power Trends’ Notes: Wide Input Range Bus ISRs 1. Use only a single 1% resistor in either the (R1) or R2 location. Place the r...
Page 4 Application Notes continued PT6100/6210/6300 Series Table 2 ISR ADJUSTMENT RESISTOR VALUES ISR ADJUSTMENT RESISTOR VALUES (Cont) 1Adc Rated PT6102 PT6101 PT6103 1Adc Rated PT6101 PT6103 2Adc Rated PT6...
Page 5 Application Notes PT6100/6210/6300 Series Using the Inhibit Function on Power Trends’ Wide Input Range Bus ISRs For applications requiring output voltage On/Off control, Figure 1 the 12pin ISR product...
Page 6 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain...
