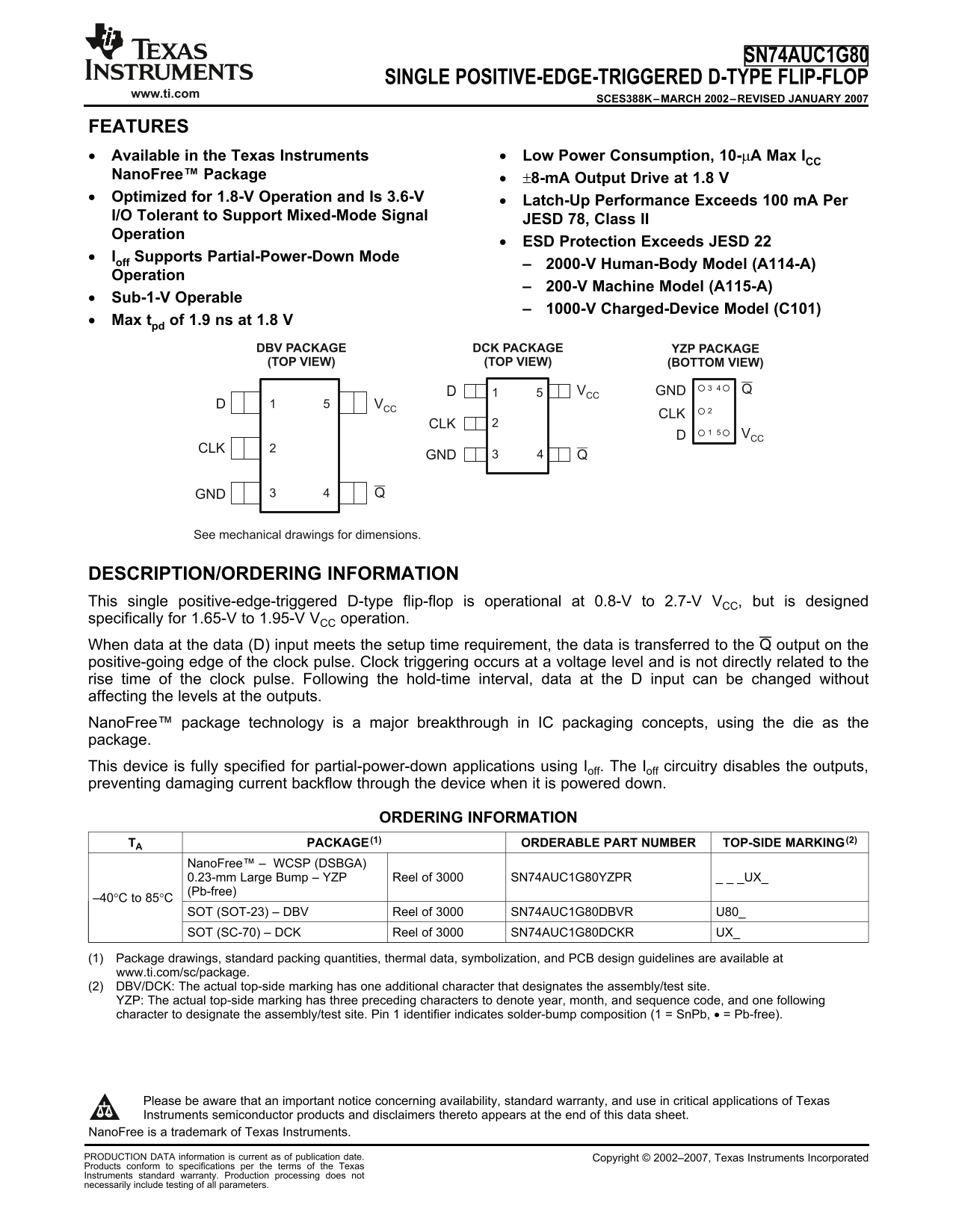

Texas Instruments SN74AUC1G80 Single-Positive-Edge-Triggered D-Type Flip-Flop Data Sheet User Manual
Summary
This advanced single positive-edge-triggered D-type flip-flop is designed for modern digital logic circuits requiring robust low-power performance, especially optimized for 1.8V operation in a NanoFree™ package. Ideal for circuit designers and engineers building sensitive control systems who need reliable signal processing across low voltage ranges (0.8V to 2.7V). The documentation provides comprehensive specifications, operational theory, and detailed ordering guides for implementing power-saving partial-power-down modes.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 12 |
| File Size | 463.05 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended operating voltage range for this flip-flop?
The device is fully specified and designed specifically for operation between 1.65-V to 1.95-V V, though it operates from 0.8-V to 2.7-V V.
How does data transfer occur in the D-type flip-flop?
Data transfers to the Q output on the positive-going edge of the clock pulse, provided the setup time requirement is met.
What is one safety feature mentioned for the NanoFree™ package?
The I circuitry supports partial-power-down mode by disabling outputs and preventing current backflow when powered down.
What are the recommended operating limits for the supply voltage and input range?
The minimum recommended supply voltage is 0.8V, and the maximum is 2.7V.
