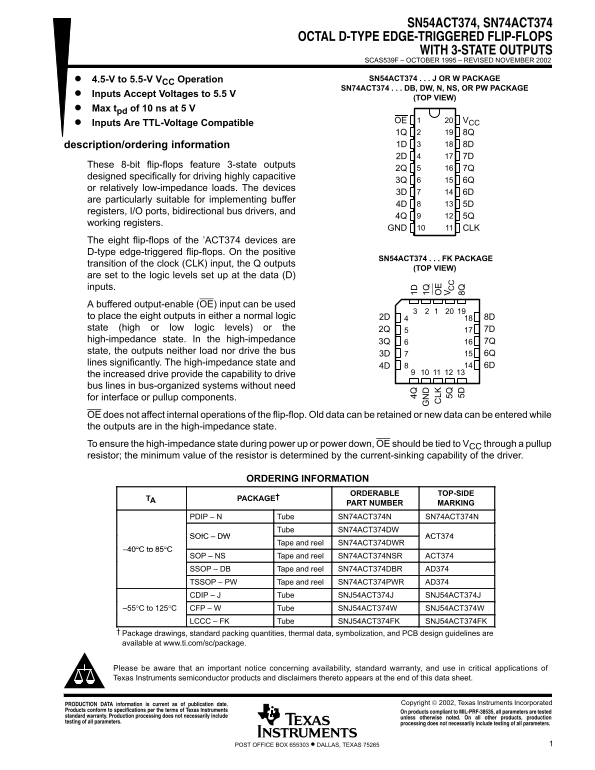

TEXAS INSTRUMENTS SN54ACT374, SN74ACT374 OCTAL D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS
Summary
The SN54ACT374 and SN74ACT374 are octal D-type edge-triggered flip-flops with 3-state outputs. Designed for 4.5V to 5.5V operation, these devices are ideal for driving capacitive or low-impedance loads, making them suitable for buffer registers, I/O ports, and bidirectional bus drivers.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 18 |
| File Size | 721.73 KB |
| Published | June 15, 2026 |
8 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range?
4.5-V to 5.5-V VCC Operation.
How do I ensure outputs are high-impedance during power cycling?
Tie OE to VCC via a pullup resistor during power up or power down.
What are the typical applications?
Implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
What does the output enable (OE) pin do?
Places outputs in normal logic state or high-impedance state; it does not affect internal flip-flop operations.
