TEXAS INSTRUMENTS SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS User Manual - Specifications

Summary

These octal edge-triggered D-type flip-flops feature high-drive, three-state outputs designed for robust handling of capacitive or low-impedance loads. They are optimally suited for creating buffer registers, I/O ports, and bidirectional bus drivers in digital electronics. The comprehensive manual provides engineers with detailed ordering information, electrical specifications, package options (including SOIC and PDIP), and operational guidelines necessary to implement reliable logic circuits into diverse systems.

📄 Preview PAGE OF 18

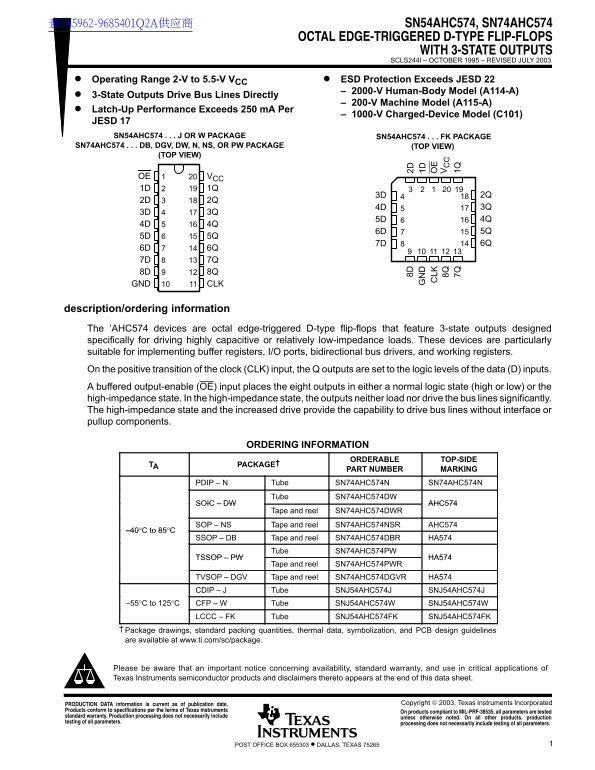

Page 1 Text Content

查询5962-9685401Q2A供应商 SN54AHC574, SN74AHC574

OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS

WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003

Operating Range 2-V to 5.5-V VCC ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

3-State Outputs Drive Bus Lines Directly

– 200-V Machine Model (A115-A)

Latch-Up Performance Exceeds 250 m A Per

– 1000-V Charged-Device Model (C101)

JESD 17 SN54AHC574 J OR W PACKAGE SN54AHC574 FK PACKAGE SN74AHC574 DB, DGV, DW, N, NS, OR PW PACKAGE (TOP VIEW)

(TOP VIEW)

OE VCC

6D 6Q 7D 7Q 8D 8Q GND CLK

description/ordering information The ’AHC574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels of the data (D) inputs. A buffered output-enable (OE) input places the eight outputs in either a normal logic state (high or low) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.

The high-impedance state and the increased drive provide the capability to drive bus lines without interface or 8D 2D

pullup components. 1D

ORDERING INFORMATION 8Q

ORDERABLE TOP-SIDE 7Q 1Q

TA PACKAGE†

PART NUMBER MARKING

PDIP – N Tube SN74AHC574N SN74AHC574N

Tube SN74AHC574DW

SOIC DW AHC574

Tape and reel SN74AHC574DWR

SOP – NS Tape and reel SN74AHC574NSR AHC574

–40°C to 85°C

SSOP – DB Tape and reel SN74AHC574DBR HA574

Tube SN74AHC574PW

TSSOP PW HA574 –

Tape and reel SN74AHC574PWR

TVSOP – DGV Tape and reel SN74AHC574DGVR HA574 CDIP – J Tube SNJ54AHC574J SNJ54AHC574J

–55°C to 125°C CFP – W Tube SNJ54AHC574W SNJ54AHC574W

LCCC – FK Tube SNJ54AHC574FK SNJ54AHC574FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For TEXAS INSTRUMENTS SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS User Manual - Specifications

Page 1 查询5962-9685401Q2A供应商 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 Operating Range 2-V to 5.5-V VCC ESD Protection Exce...
Page 2 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 description/ordering information (continued) OE does not affect internal ...
Page 3 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 recommended operating conditions (see Note 3) SN54AHC574 SN74AHC574 MIN M...
Page 4 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 timing requirements over recommended operating free-air temperature range...
Page 5 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 switching characteristics over recommended operating free-air temperature...
Page 6 SN54AHC574, SN74AHC574 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS SCLS244I – OCTOBER 1995 – REVISED JULY 2003 PARAMETER MEASUREMENT INFORMATION VCC S1 RL = 1 kΩ Open From Output Test ...
Page 7 PACKAGE OPTION ADDENDUM www.ti.com 30-Mar-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty 5962-9685401Q2A ACTIV...
Page 8 PACKAGE OPTION ADDENDUM www.ti.com 30-Mar-2005 In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI t...
Page 11 MECHANICAL DATA MLCC006B – OCTOBER 1996 FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER 28 TERMINAL SHOWN ANO. OF TERMINALS MIN MINMAX MAX B SQ 0.640 0.660 0.495 0.560 NOTES: A. All linear dimensions ar...
Page 13 MECHANICAL DATA MPDS006C – FEBRUARY 1996 – REVISED AUGUST 2000 DGV (R-PDSO-G**) PLASTIC SMALL-OUTLINE 24 PINS SHOWN 0,16 NOM Gage Plane Seating Plane 1,20 MAX 0,08 PINS ** DIM A MAX 3,70 5,10 5,103,70...
Page 16 MECHANICAL DATA MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001 DB (R-PDSO-G**) PLASTIC SMALL-OUTLINE 28 PINS SHOWN Gage Plane Seating Plane 2,00 MAX 0,05 MIN 0,10 PINS ** DIM A MAX 6,506,50 7,50 8,50...
Page 17 MECHANICAL DATA MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999 PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE 14 PINS SHOWN 0,15 NOM Gage Plane Seating Plane 1,20 MAX 0,10 PINS ** DIM A MAX 3,10 5,10 ...
Page 18 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...

Manual Details

Brand Texas Instruments
Pages 18
File Size 551.12 KB
Published June 15, 2026
8 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the operating voltage range for SN54AHC574 and SN74AHC574?

2 V to 5.5 V

What is the maximum continuous current through V_CC or GND?

±75 mA

Which packages are available for the SN74AHC574?

DB, DGV, DW, N, NS, PW

When do the outputs enter a high-impedance state?

When OE is high

What is the ESD protection level on human-body model?

Exceeds 2000 V
