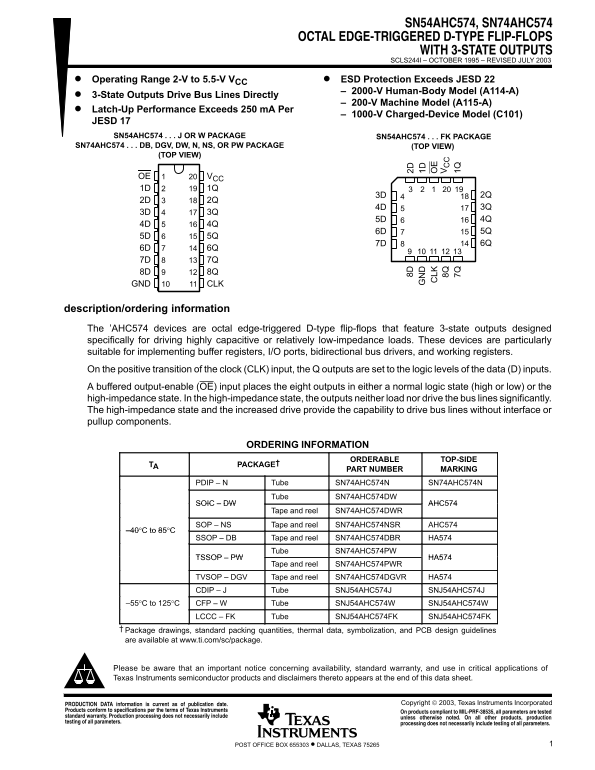

TEXAS INSTRUMENTS SN54AHC574, SN74AHC574 DATASHEET USER MANUAL
Summary
The SN54AHC574 is an octal edge-triggered D-type flip-flop featuring reliable 3-state outputs, making it essential for interfacing with complex digital systems. Designed to drive challenging capacitive or low-impedance bus lines and I/O ports, this component excels as a buffer register or bidirectional bus driver. This technical manual is a comprehensive guide for hardware engineers, detailing operating ranges, pin configurations, circuit logic, and optimal implementation techniques required for robust data handling applications.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 20 |
| File Size | 750.99 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range?
The devices operate from 2 V to 5.5 V VCC.
Can the outputs drive bus lines directly?
Yes, the 3-state outputs can drive bus lines directly without interface or pullup components.
How to ensure high-impedance state during power up/down?
Tie OE to VCC through a pullup resistor; min value depends on driver's current-sinking capability.
What ESD protection levels do these devices have?
Exceeds 2000-V HBM, 200-V MM, 1000-V CDM per JESD 22.
