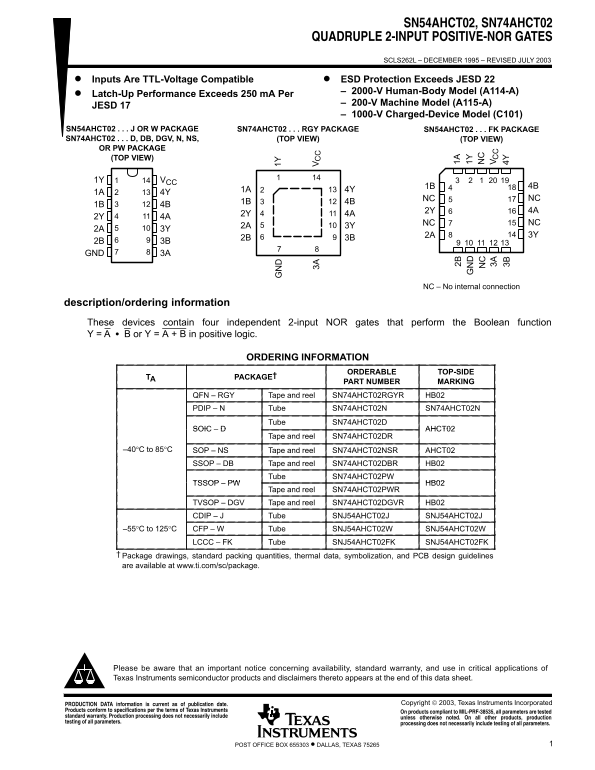

Texas Instruments SN54AHCT02, SN74AHCT02 datasheet user manual
Summary
This datasheet describes the Texas Instruments SN54AHCT02 and SN74AHCT02 quadruple 2-input positive-NOR gates, each containing four independent gates performing the Boolean function Y = A + B in positive logic. Inputs are TTL-voltage compatible with ESD protection exceeding 2000V human body model, 200V machine model, and 1000V charged device model per JESD 22. Latch-up performance exceeds 250mA per JESD 17. The SN74AHCT02 operates over -40°C to 85°C in packages including QFN, PDIP, SOIC, SOP, SS
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 23 |
| File Size | 1.05 MB |
| Published | June 19, 2026 |
7 views
Enter the captcha to get the download link:
Frequently Asked Questions
What boolean function does the NOR gate perform?
It performs Y = A + B or Y = A OR B in positive logic.
What is the supported supply voltage range?
The supply voltage range (Vcc) is –0.5 V to 7 V.
What are the recommended environmental limits for this device?
The storage temperature range is from –65°C to 150°C.
