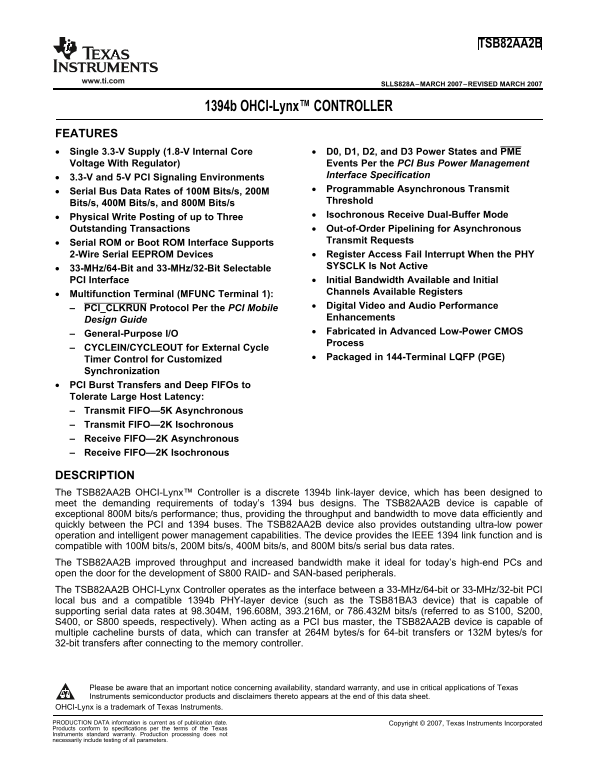

Texas Instruments TSB82AA2B 1394b OHCI-Lynx CONTROLLER datasheet user manual
Summary
This datasheet from Texas Instruments documents the TSB82AA2B OHCI-Lynx 1394b link-layer controller supporting serial bus data rates of 100 Mbps, 200 Mbps, 400 Mbps, and 800 Mbps. Housed in a 144-terminal LQFP package, the device features a selectable 33 MHz 64-bit or 32-bit PCI interface with 3.3 V and 5 V signaling compatibility, deep FIFOs including 5K asynchronous transmit and 2K isochronous receive buffers, and advanced power management with D0 through D3 power states. It includes a serial
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 5 |
| File Size | 79.80 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What serial bus data rates does the TSB82AA2B support?
It supports 100M, 200M, 400M, and 800M bits/s. It also is compatible with rates up to 786.432M bits/s (S800).
How does the device handle large bus latencies?
It implements deep transmit and receive FIFOs (5K Async / 2K Iso for TX; 2K Async / 2K Iso for RX) to buffer data, preventing overruns due to latency.
Is the TSB82AA2B suitable for critical applications?
No. It is neither designed nor intended for use in safety-critical/military/aerospace environments unless specifically designated by TI as compliant or military-grade.
What kind of PCI interfaces are available?
It supports 33-MHz/64-Bit and 33-MHz/32-Bit selectable PCI Interfaces.
