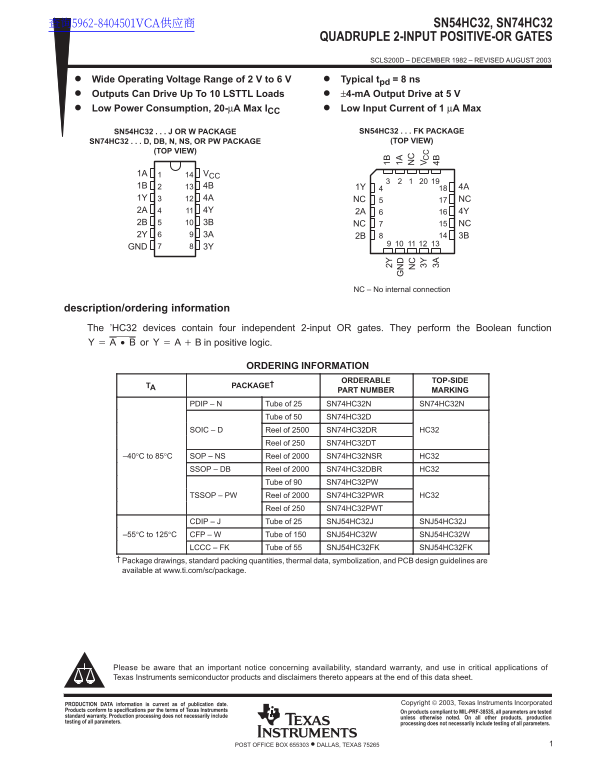

Texas Instruments SN54HC32, SN74HC32 Quadruple 2-Input Positive-Or Gates Data Sheet User Manual

查询5962-8404501VCA供应商 SN54HC32, SN74HC32

QUADRUPLE 2-INPUT POSITIVE-OR GATES SCLS200D – DECEMBER 1982 – REVISED AUGUST 2003

Wide Operating Voltage Range of 2 V to 6 V Typical tpd = 8 ns Outputs Can Drive Up To 10 LSTTL Loads ±4-m A Output Drive at 5 V Low Power Consumption, 20-µA Max ICC Low Input Current of 1 µA Max

SN54HC32 J OR W PACKAGE SN54HC32 FK PACKAGE

SN74HC32 D, DB, N, NS, OR PW PACKAGE (TOP VIEW)

(TOP VIEW)

1A VCC

1B 4B 1Y 4A 1Y 4A NC NC 2A 4Y 2A 4Y 2B 3B NC NC 2Y 3A 2B 3B GND 3Y

NC – No internal connection

description/ordering information The ’HC32 devices contain four independent 2-input OR gates. They perform the Boolean function

or B in positive logic.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE† 1B

PART NUMBER MARKING 2Y

PDIP – N Tube of 25 SN74HC32N SN74HC32N

Tube of 50 SN74HC32D

SOIC – D SN74HC32DR HC32Reel of 2500

Reel of 250 SN74HC32DT

–40 C to 85 SOP – NS Reel of 2000 SN74HC32NSR HC32

SSOP – DB Reel of 2000 SN74HC32DBR HC32

Tube of 90 SN74HC32PW

TSSOP – PW SN74HC32PWR HC32Reel of 2000

Reel of 250 SN74HC32PWT

CDIP – J Tube of 25 SNJ54HC32J SNJ54HC32J

–55 C to 125 CFP – W Tube of 150 SNJ54HC32W SNJ54HC32W

LCCC – FK Tube of 55 SNJ54HC32FK SNJ54HC32FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
