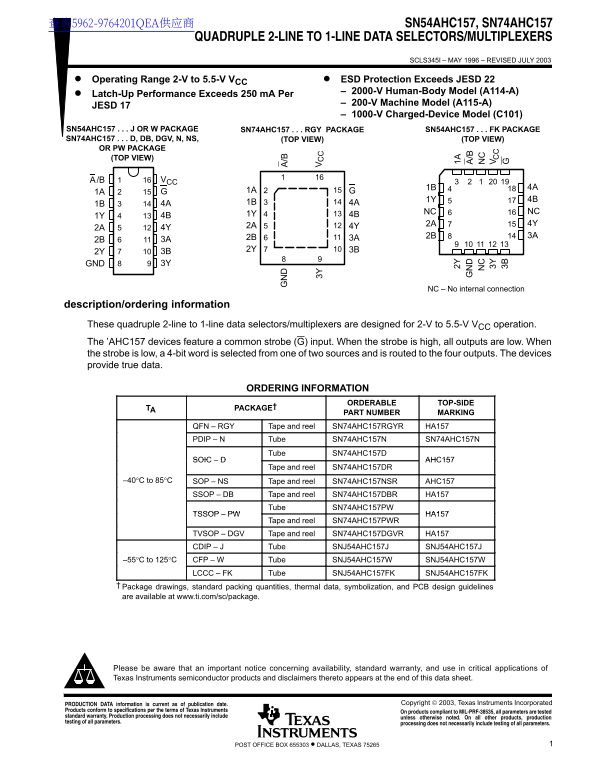

Texas Instruments SN54AHC157, SN74AHC157 Quadruple 2-Line to 1-Line Data Selectors Multiplexers Data Manual

查询5962-9764201QEA供应商 SN54AHC157, SN74AHC157

QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS

SCLS345I – MAY 1996 – REVISED JULY 2003

Operating Range 2-V to 5.5-V VCC ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

Latch-Up Performance Exceeds 250 m A Per

– 200-V Machine Model (A115-A)

JESD 17

– 1000-V Charged-Device Model (C101)

SN54AHC157 J OR W PACKAGE SN74AHC157 RGY PACKAGE SN54AHC157 FK PACKAGE SN74AHC157 D, DB, DGV, N, NS, (TOP VIEW) (TOP VIEW)

OR PW PACKAGE (TOP VIEW)

A/B VCC

NC NC

2Y 3B GND 3Y

NC – No internal connection

description/ordering information

These quadruple 2-line to 1-line data selectors/multiplexers are designed for 2-V to 5.5-V VCC operation. The ’AHC157 devices feature a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The devices provide true data.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

QFN – RGY Tape and reel SN74AHC157RGYR HA157 PDIP – N Tube SN74AHC157N SN74AHC157N

Tube SN74AHC157D

SOIC AHC157

Tape and reel SN74AHC157DR

–40°C to 85°C SOP – NS Tape and reel SN74AHC157NSR AHC157

SSOP – DB Tape and reel SN74AHC157DBR HA157 3Y 3B

Tube SN74AHC157PW

TSSOP PW HA157 –

Tape and reel SN74AHC157PWR

TVSOP – DGV Tape and reel SN74AHC157DGVR HA157 CDIP – J Tube SNJ54AHC157J SNJ54AHC157J

–55°C to 125°C CFP – W Tube SNJ54AHC157W SNJ54AHC157W

LCCC – FK Tube SNJ54AHC157FK SNJ54AHC157FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
