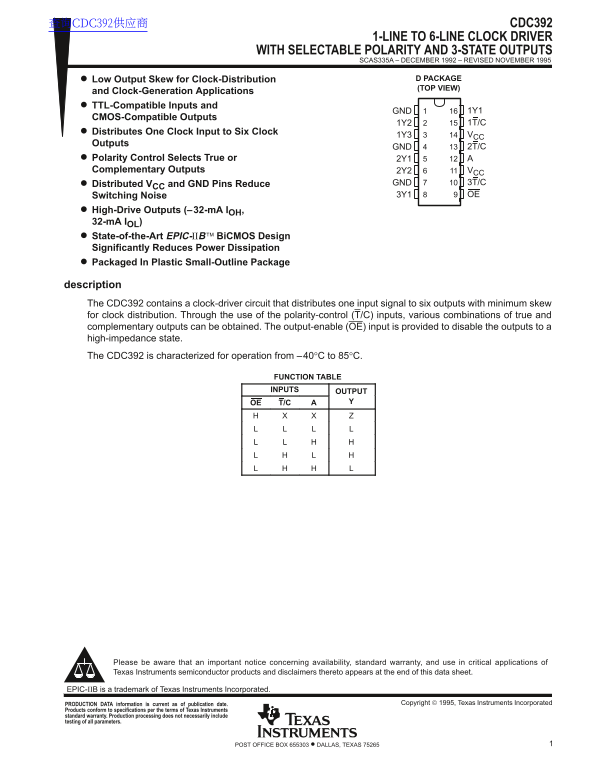

Texas Instruments CDC392 1-Line to 6-Line Clock Driver with Selectable Polarity and 3-State Outputs

查询CDC392供应商 CDC392

1-LINE TO 6-LINE CLOCK DRIVER

WITH SELECTABLE POLARITY AND 3-STATE OUTPUTS

SCAS335A – DECEMBER 1992 – REVISED NOVEMBER 1995

Low Output Skew for Clock-Distribution D PACKAGE (TOP VIEW)

and Clock-Generation Applications TTL-Compatible Inputs and

GND 1Y1

CMOS-Compatible Outputs

Distributes One Clock Input to Six Clock

1Y3 VCC

Outputs

GND 2T/C

Polarity Control Selects True or 2Y1 Complementary Outputs 2Y2 VCC

Distributed VCC and GND Pins Reduce GND 3T/C Switching Noise 3Y1 OE

High-Drive Outputs (–32-m A IOH, 32-m A IOL) State-of-the-Art EPIC-ΙΙB Bi CMOS Design Significantly Reduces Power Dissipation Packaged In Plastic Small-Outline Package

description The CDC392 contains a clock-driver circuit that distributes one input signal to six outputs with minimum skew for clock distribution. Through the use of the polarity-control (T/C) inputs, various combinations of true and complementary outputs can be obtained. The output-enable (OE) input is provided to disable the outputs to a high-impedance state. The CDC392 is characterized for operation from –40°C to 85°C.

FUNCTION TABLE INPUTS OUTPUT OE T/C

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

EPIC-ΙΙB is a trademark of Texas Instruments Incorporated.

Copyright  1995, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
