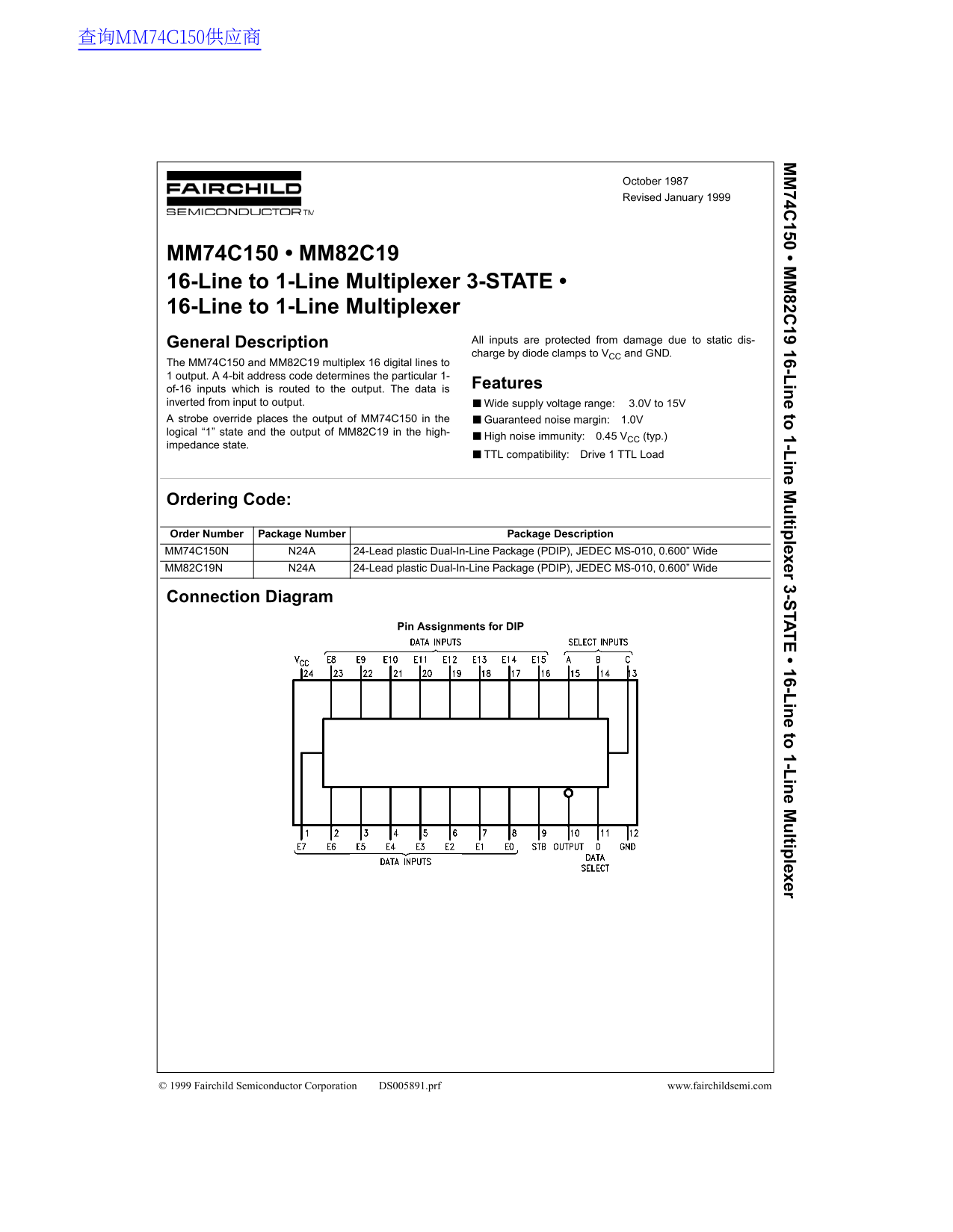

Fairchild MM74C150 • MM82C19 16-Line to 1-Line Multiplexer 3-STATE • 16-Line to 1-Line Multiplexer Data Handbook
Summary
The MM74C150 / MM82C19 is a highly versatile 3-STATE, 16-Line to 1-Line Multiplexer designed for digital circuit selection. This component efficiently routes one of sixteen input lines to a single output using address decoding and strobe control. The accompanying manual provides comprehensive technical details, including detailed truth tables, wide voltage ranges (3.0V to 15V), guaranteed noise margins, and precise electrical specifications. It is an essential resource for electronic engineers and circuit designers integrating reliable signal path switching into their low-voltage digital systems.
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 8 |
| File Size | 70.49 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of this multiplexer chip?
It multiplexes 16 digital lines down to a single output using a 4-bit address code, with data inverted from input to output.
What specific voltage range can I use for operation?
The device supports a wide supply voltage range, operating between 3.0V and 15V.
How is the chip protected from electrostatic damage?
All inputs are protected from static charge by built-in diode clamps connecting to V and GND.
What are the guaranteed noise immunity levels?
It features a guaranteed noise margin of 1.0V for logical ‘1’ state and 0.45V (typ.) for the high impedance state.
Does the output include an override feature?
Yes, the device includes a strobe override function that can place the output in a specific impedance state.
