The ABT16245 is a robust 16-bit non-inverting bidirectional buffer, featuring sixteen independent output segments ideal for complex byte-controlled bus interfacing. This comprehensive guide provides critical details for hardware engineers, including electrical specifications, timing diagrams, operational truth tables, and physical package information. It ensures reliable implementation in professional digital communication systems requiring stable, high-integrity data signal transmission across multiple paths.

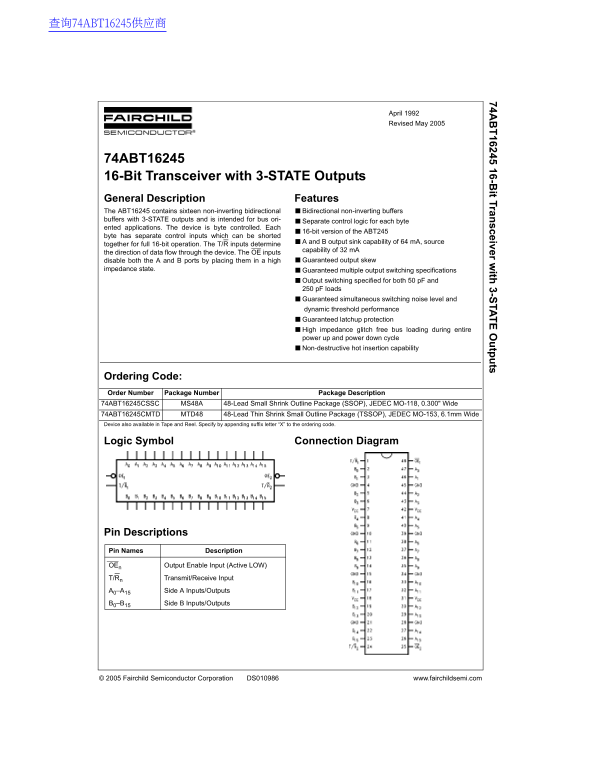

Page 1 Text Content
查询74ABT16245供应商
74A 16245 16-B it Tran sceiver w ith 3-S TA tp ts
April 1992 Revised May 2005
74ABT16245 16-Bit Transceiver with 3-STATE Outputs General Description Features The ABT16245 contains sixteen non-inverting bidirectional ■Bidirectional non-inverting buffers buffers with 3-STATE outputs and is intended for bus ori-
■Separate control logic for each byte
ented applications. The device is byte controlled. Each
■16-bit version of the ABT245
byte has separate control inputs which can be shorted
■A and B output sink capability of 64 m A, source
together for full 16-bit operation. The T/R inputs determine
capability of 32 m A
the direction of data flow through the device. The OE inputs
disable both the A and B ports by placing them in a high ■Guaranteed output skew
impedance state. ■Guaranteed multiple output switching specifications
■Output switching specified for both 50 p F and p F loads ■Guaranteed simultaneous switching noise level and dynamic threshold performance ■Guaranteed latchup protection ■High impedance glitch free bus loading during entire power up and power down cycle ■Non-destructive hot insertion capability
Ordering Code: Order Number Package Number Package Description 74ABT16245CSSC MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide 74ABT16245CMTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.
Logic Symbol Connection Diagram
Pin Descriptions Pin Names Description
OEn Output Enable Input (Active LOW)
T/Rn Transmit/Receive Input
A0–A15 Side A Inputs/Outputs
B0–B15 Side B Inputs/Outputs
© 2005 Fairchild Semiconductor Corporation DS010986 www.fairchildsemi.com
Page Summary Contents For Fairchild Semiconductor 74ABT16245 16-Bit Buffer Line Driver with 3-STATE Outputs - Data Sheet, User Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 8 |
| File Size | 101.04 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the function of the ABT16245?
It contains sixteen non-inverting bidirectional buffers with 3-STATE outputs, designed for bus operation.
How does the device operate in a high impedance (HIGH-Z) state?
Setting the OE inputs causes both A and B ports to enter a high impedance 'X' state.
What is the recommended supply voltage range?
The specified operating condition for the Supply Voltage (VCC) is 4.5V to 5.5V.
Does it provide full 16-bit operation capability?
Yes, by shorting together the separate control inputs for A and B gives full 16-bit operation.
