Texas Instruments SN74ALVC08 Quadruple 2-Input Positive Logic AND Gate User Manual and Specifications
Summary

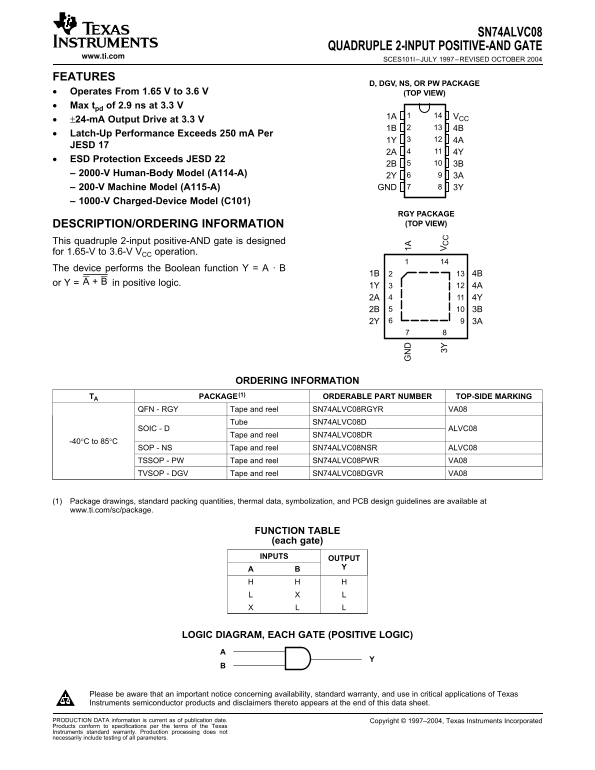

This manual details a reliable quadruple 2-input positive-AND gate designed for modern digital circuit design operating between 1.65V and 3.6V. It provides comprehensive technical data, including detailed electrical characteristics, thermal management guidelines across multiple packages (QFN, SOIC, TSSOP), and robust performance ratings such as high ESD protection. Engineered for engineers creating low-voltage logic systems, this guide is essential for proper circuit integration, reliable function mapping, and ensuring performance under various operating conditions.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 16 |
| File Size | 758.75 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range?
The device operates in a supply voltage range of 1.65 V to 3.6 V.
How must unused inputs be maintained for proper operation?
All unused inputs must be held at V or GND.
What is the maximum operating temperature?
The recommended operating free-air temperature range is -40 °C to 85 °C.
Which packages are available for this gate?
Available package options include D, DGV, NS, OR, PW, and RGY.
