Texas Instruments CD74AC139 CD74ACT139 User's Manual and Specifications

Summary

Acquire the technical datasheet and specifications for CD74AC139 and CD74ACT139, dual 2-to-4-line decoders/demultiplexers. This resource provides engineers with detailed functional diagrams, absolute maximum ratings, electrical characteristics, and operating conditions necessary for precise circuit implementation. Perfect for electronics designers who require robust CMOS logic components that offer accurate decoding and demultiplexing functions across various supply voltages.

📄 Preview PAGE OF 7

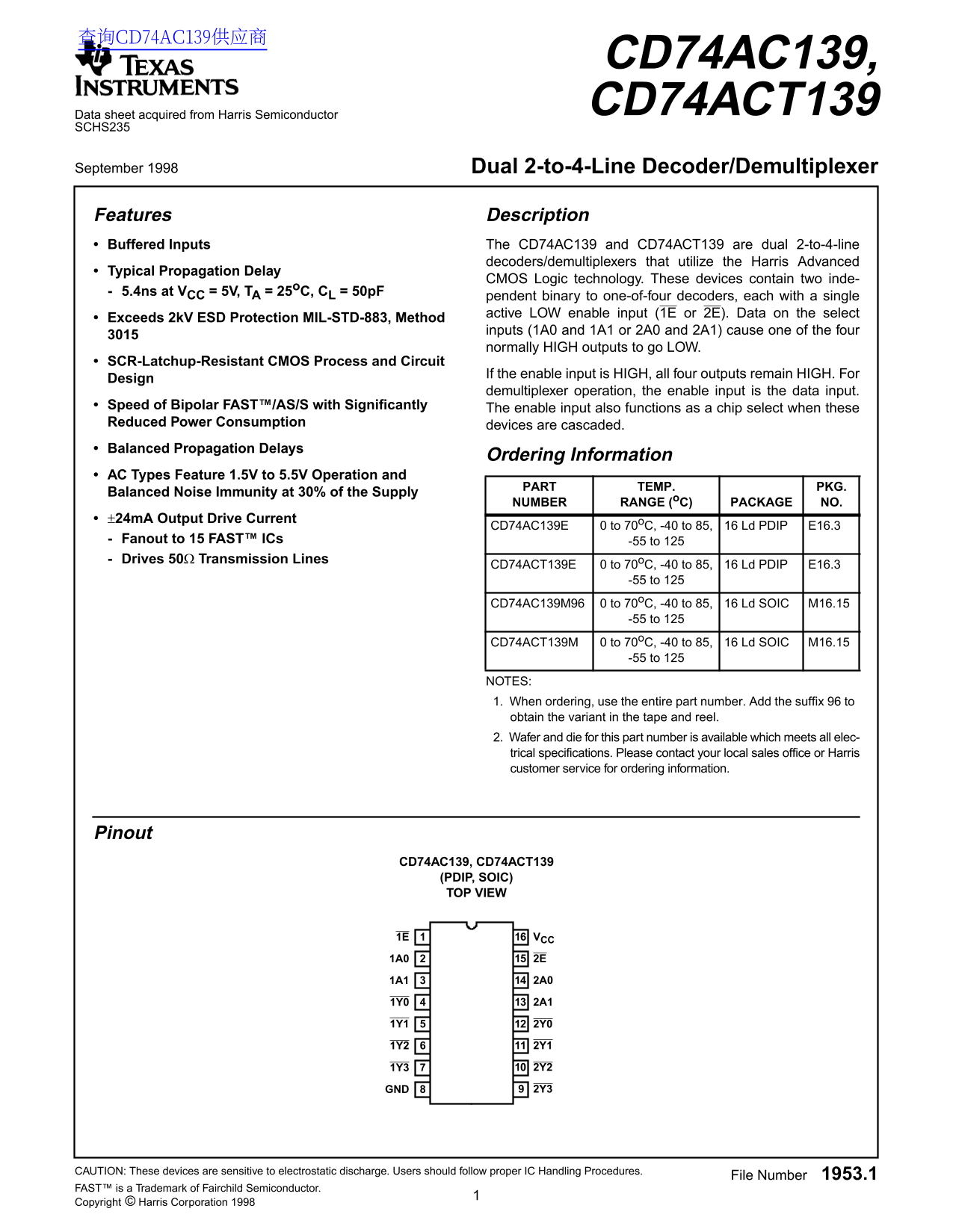

Page 1 Text Content

查询CD74AC139供应商

CD74AC139, CD74ACT139

Data sheet acquired from Harris Semiconductor SCHS235

September 1998 Dual 2-to-4-Line Decoder/Demultiplexer

Features Description Buffered Inputs The CD74AC139 and CD74ACT139 are dual 2-to-4-line

decoders/demultiplexers that utilize the Harris Advanced

Typical Propagation Delay

CMOS Logic technology. These devices contain two inde-

5.4ns at VCC = 5V, TA = 25o C, CL = 50p F

pendent binary to one-of-four decoders, each with single active LOW enable input (1E or 2E). Data on the select

Exceeds 2k V ESD Protection MIL-STD-883, Method

inputs (1A0 and 1A1 or 2A0 and 2A1) cause one of the four normally HIGH outputs to go LOW.

SCR-Latchup-Resistant CMOS Process and Circuit

If the enable input is HIGH, all four outputs remain HIGH. For

Design

[ /Title

demultiplexer operation, the enable input is the data input.

(CD74 Speed of Bipolar FAST™/AS/S with Significantly The enable input also functions as chip select when these Reduced Power Consumption devices are cascaded.

AC139

Balanced Propagation Delays

Ordering Information

CD74 AC Types Feature 1.5V to 5.5V Operation and

PART TEMP. PKG.

ACT13 Balanced Noise Immunity at 30% of the Supply

NUMBER RANGE (o C) PACKAGE NO.

9) ±24m A Output Drive Current

CD74AC139E 0 to 70o C, -40 to 85, 16 Ld PDIP E16.3

/Sub- Fanout to 15 FAST™ ICs -55 to 125 ject Drives 50Ω Transmission Lines

CD74ACT139E 0 to 70o C, -40 to 85, 16 Ld PDIP E16.3

(Dual -55 to 125

2-to-4- CD74AC139M96 0 to 70o C, -40 to 85, 16 Ld SOIC M16.15

-55 to 125

CD74ACT139M 0 to 70o C, -40 to 85, 16 Ld SOIC M16.15

Decod

-55 to 125

er/Dem

NOTES:

ulti-

1. When ordering, use the entire part number. Add the suffix to

plexer)

obtain the variant in the tape and reel.

/Autho 2. Wafer and die for this part number is available which meets all elec-

r () trical specifications. Please contact your local sales office or Harris customer service for ordering information.

/Key- words (Har-

Pinout

Semi- CD74AC139, CD74ACT139 (PDIP, SOIC)

TOP VIEW

ductor, Advan

1E VCC

/Cre-

ator ()

/DOCI

GND 2Y3

CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.

File Number 1953.1

FAST™ is a Trademark of Fairchild Semiconductor. Copyright © Harris Corporation 1998

Page Summary Contents For Texas Instruments CD74AC139 CD74ACT139 User's Manual and Specifications

Page 1 查询CD74AC139供应商 CD74AC139, CD74ACT139 Data sheet acquired from Harris Semiconductor SCHS235 September 1998 Dual 2-to-4-Line Decoder/Demultiplexer Features Description Buffered Inputs The CD74AC139 and ...
Page 2 CD74AC139, CD74ACT139 Functional Diagram DECODER DECODER 2E GND = 8 VCC = 16 TRUTH TABLE INPUTS SELECT OUTPUTSENABLE X = Don’t Care
Page 3 CD74AC139, CD74ACT139 Absolute Maximum Ratings Thermal Information DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 6V Thermal Resistance (Typical, Note 5) θJA (o C/W) D...
Page 4 CD74AC139, CD74ACT139 DC Electrical Specifications (Continued) TEST -40o C TO -55o C TO CONDITIONS 25o C 85o C 125o C PARAMETER SYMBOL (V) IO (m A) (V) MIN MAX MIN MAX MIN MAX UNITSVI Low Level Output...
Page 5 CD74AC139, CD74ACT139 Switching Specifications Input tr, tf = 3ns, CL = 50p F (Worst Case) -40o C TO 85o C -55o C TO 125o C PARAMETER SYMBOL VCC (V) TYP MAX MIN TYP MAX UNITSMIN AC TYPES Propagation D...
Page 6 CD74AC139, CD74ACT139 OUTPUT RL (NOTE) 500Ω OUTPUT CL LOAD 50p F NOTE: For AC Series Only: When VCC = 1.5V, RL = 1kΩ. CD74AC CD74ACT Input Level VCC 3V Input Switching Voltage, VS 0.5 VCC 1.5V Output ...
Page 7 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain...

Manual Details

Brand Texas Instruments
Pages 7
File Size 30.66 KB
Published June 22, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Are these ICs sensitive to electrostatic charge during handling?

Yes, these devices are sensitive to electrostatic discharge, so users must follow proper IC Handling Procedures.

What is the operating voltage range for the CD74AC139/CD74ACT139 decoders?

The recommended supply voltage (Vcc) range varies: 1.5V to 5.5V for AC Types, and 4.5V to 5.5V for ACT Types.

How does the enable input function in this demultiplexer?

The enable (E or 2E) input controls operation: if it is HIGH, all four outputs remain HIGH; otherwise, select inputs determine which low output activates.

What packaging and temperature specifications are available for these parts?

Packages include PDIP and SOIC. The operating temperature range is specified from -55°C to 125°C for the devices themselves.
