SIEMENS Smart Lowside Power Switch HITFET BTS 917 User Guide

Summary

This manual provides detailed technical documentation for the HITFET BTS 917 Smart Lowside Power Switch. This N-channel vertical power FET is a highly protected switch ideal for replacing discrete circuits and electromechanical relays in DC applications (12V and 24V). It offers comprehensive embedded protection features, including ESD, thermal management, overload detection, and short circuit protection. It is designed for controlling resistive, inductive, and capacitive loads across various switching and linear power applications.

📄 Preview PAGE OF 11

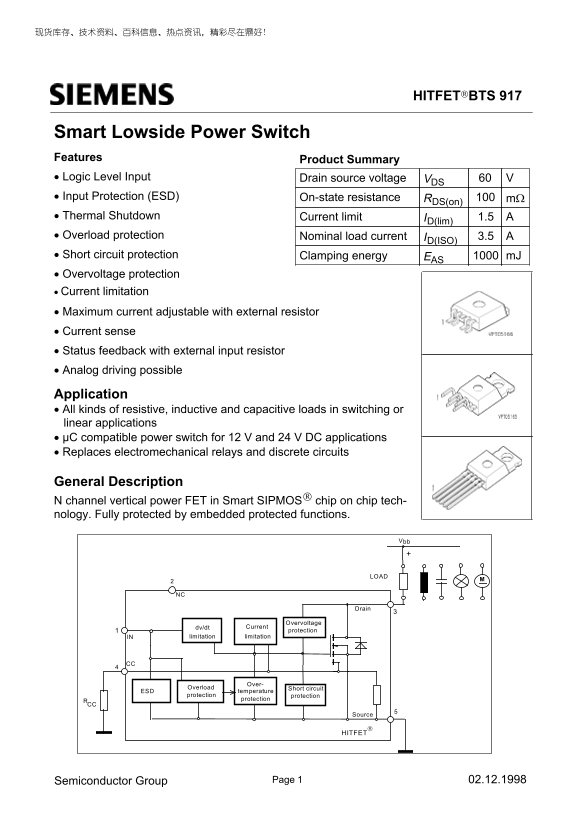

Page 1 Text Content

HITFETBTS 917

Smart Lowside Power Switch Features Product Summary • Logic Level Input Drain source voltage V60VDS • Input Protection (ESD) On-state resistance RDS(on) mΩ • Thermal Shutdown ID(lim) 1.5 ACurrent limit • Overload protection Nominal load current 3.5 AID(ISO) • Short circuit protection Clamping energy m JEAS • Overvoltage protection • Current limitation • Maximum current adjustable with external resistor • Current sense • Status feedback with external input resistor • Analog driving possible

Application • All kinds of resistive, inductive and capacitive loads in switching or linear applications • µC compatible power switch for 12 V and 24 V DC applications • Replaces electromechanical relays and discrete circuits

General Description N channel vertical power FET in Smart SIPMOS chip on chip tech- nology. Fully protected by embedded protected functions.

Drain

Overvoltage

dv/dt Current

protection

IN limitation limitation

Over-

Overload

ESD temperature Short circuit

protection

protection protection

Source

HITFET

02.12.1998Semiconductor Group

Page Summary Contents For SIEMENS Smart Lowside Power Switch HITFET BTS 917 User Guide

Page 1 HITFETBTS 917 Smart Lowside Power Switch Features Product Summary • Logic Level Input Drain source voltage V60VDS • Input Protection (ESD) On-state resistance RDS(on) mΩ • Thermal Shutdown ID(lim) 1....
Page 2 BTS 917 Maximum Ratings at Tj = 25 °C unless otherwise specified Parameter Symbol Unit Value Drain source voltage VDS VDS(SC) Drain source voltage for short circuit protection RCC = 0 Ω without RCC Co...
Page 3 BTS 917 Electrical Characteristics Parameter Symbol Unit Values max.typ.min.at Tj=25°C, unless otherwise specified Characteristics -Drain source clamp voltage VVDS(AZ) Tj = - 40 ...+ 150°C, ID = 10 m ...
Page 4 BTS 917 Electrical Characteristics Parameter Symbol Values Unit at Tj=25°C, unless otherwise specified min. typ. max. Characteristics Initial peak short circuit current limit ID(SCp) VIN = 10 V, VDS =...
Page 5 BTS 917 Block Diagramm Terms Inductive and overvoltage output clamp VDS Vbb HITFET RCC CC IN CC HITFET Short circuit behaviour The ground lead impedance of RCC should be as low as possible Input circu...
Page 6 (o n) to BTS 917 On-state resistance Maximum allowable power dissipation RON = f(Tj); ID=3.5A; VIN=10V Ptot = f(Tc) BTS 917 IN (t h) (o n) On-state resistance Typ. input threshold voltage RON = f(Tj);...
Page 7 BTS 917 Typ. transfer characteristics Typ. short circuit current ID = f(VIN); VDS=12V; Tj=25°C IDlim = f(Tj); RCC=0Ω, VDS=12V Parameter: VIN VIN Tj Typ. output characteristic Safe Operating Area ID = ...
Page 8 th JC BTS 917 Typ. current limit versus RCC Typ. current sense characteristics ID(lim) = f(RCC); Tj=25°C VCC = f(ID); VIN=10V Parameter: VIN Parameter: RCC, Tj 18 Ohm 47 Ohm 125°C 0.40 no Rcc 10 Ohm T...
Page 9 BTS 917 Application examples: Current Sense Features and Status Signals IN HITFET µC Vbb RCCVCC thermal shutdown reached triptemperature The accuray of Vcc is at each temperature about ±10 % Status si...
Page 10 BTS 917 Package and ordering code all dimensions in mm Ordering code: Q67060-S6700-A4 Ordering Code: Q67060-S6700-A2 Ordering Code: Q67060-S6700-A3 02.12.1998Semiconductor Group
Page 11 BTS 917 Edition 7.97 Published by Siemens AG, Bereich Halbleiter Vetrieb, Werbung, Balanstraße 73, 81541 München © Siemens AG 1997 All Rights Reserved. Attention please! As far as patents or other rig...
