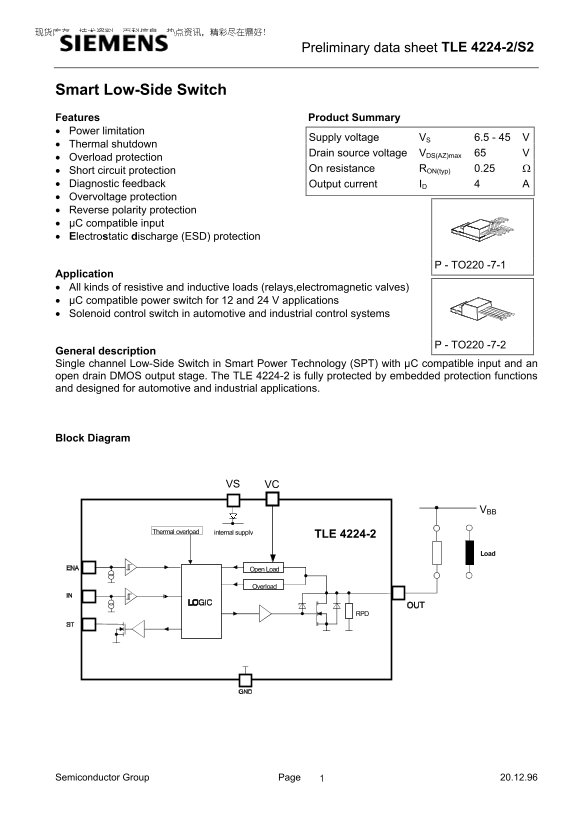

Preliminary data sheet TLE 4224-2/S2
Smart Low-Side Switch Features Product Summary • Power limitation
Supply voltage VS 6.5 - 45 V
• Thermal shutdown
Drain source voltage VDS(AZ)max 65 V
• Overload protection
• Short circuit protection On resistance RON(typ) 0.25 Ω
• Diagnostic feedback Output current ID 4 A • Overvoltage protection • Reverse polarity protection • µC compatible input • Electrostatic discharge (ESD) protection
P - TO220 -7-1
Application • All kinds of resistive and inductive loads (relays,electromagnetic valves) • µC compatible power switch for 12 and 24 V applications • Solenoid control switch in automotive and industrial control systems
P - TO220 -7-2
General description Single channel Low-Side Switch in Smart Power Technology (SPT) with µC compatible input and an open drain DMOS output stage. The TLE 4224-2 is fully protected by embedded protection functions and designed for automotive and industrial applications.
Block Diagram
VS VC
Thermal overload internal supply
TLE 4224-2
Open Load
Overload
Semiconductor Group Page 20.12.961
