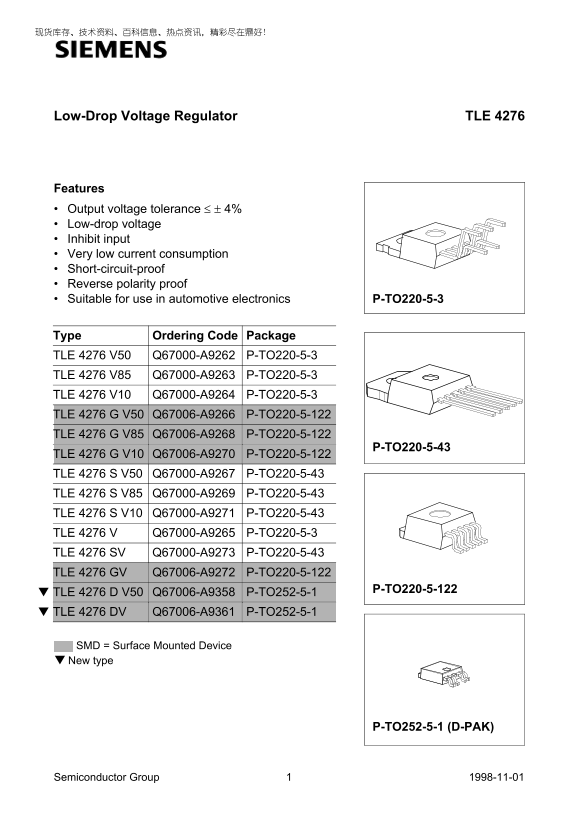

Low-Drop Voltage Regulator TLE 4276
Features Output voltage tolerance 4% Low-drop voltage Inhibit input Very low current consumption Short-circuit-proof Reverse polarity proof Suitable for use in automotive electronics P-TO220-5-3
Type Ordering Code Package TLE 4276 V50 Q67000-A9262 P-TO220-5-3 TLE 4276 V85 Q67000-A9263 P-TO220-5-3 TLE 4276 V10 Q67000-A9264 P-TO220-5-3 TLE 4276 G V50 Q67006-A9266 P-TO220-5-122 TLE 4276 G V85 Q67006-A9268 P-TO220-5-122
P-TO220-5-43
TLE 4276 G V10 Q67006-A9270 P-TO220-5-122 TLE 4276 S V50 Q67000-A9267 P-TO220-5-43 TLE 4276 S V85 Q67000-A9269 P-TO220-5-43 TLE 4276 S V10 Q67000-A9271 P-TO220-5-43 TLE 4276 V Q67000-A9265 P-TO220-5-3 TLE 4276 SV Q67000-A9273 P-TO220-5-43 TLE 4276 GV Q67006-A9272 P-TO220-5-122
P-TO220-5-122
TLE 4276 D V50 Q67006-A9358 P-TO252-5-1 TLE 4276 DV Q67006-A9361 P-TO252-5-1
SMD = Surface Mounted Device ▼ New type
P-TO252-5-1 (D-PAK)
Semiconductor Group 1998-11-01
