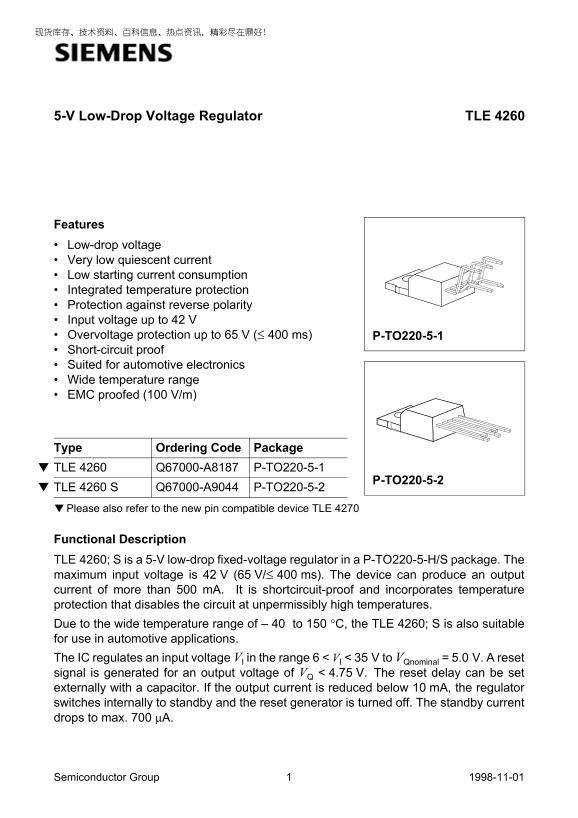

5-V Low-Drop Voltage Regulator TLE
Features Low-drop voltage Very low quiescent current Low starting current consumption Integrated temperature protection Protection against reverse polarity Input voltage up to 42 V Overvoltage protection up to 65 V (≤ 400 ms) P-TO220-5-1 Short-circuit proof Suited for automotive electronics Wide temperature range EMC proofed (100 V/m)
Type Ordering Code Package TLE Q67000-A8187 P-TO220-5-1
P-TO220-5-2
TLE Q67000-A9044 P-TO220-5-2 ▼ Please also refer to the new pin compatible device TLE
Functional Description TLE 4260; S is a 5-V low-drop fixed-voltage regulator in a P-TO220-5-H/S package. The
maximum input voltage is 42 V (65 V/≤ ms). The device can produce an output
current of more than 500 m A. It is shortcircuit-proof and incorporates temperature protection that disables the circuit at unpermissibly high temperatures. Due to the wide temperature range of – 40 to 150 °C, the TLE 4260; S is also suitable for use in automotive applications.
The IC regulates an input voltage VI in the range 6 < VI < 35 V to VQnominal = 5.0 V. A reset signal is generated for an output voltage of VQ < 4.75 V. The reset delay can be set
externally with a capacitor. If the output current is reduced below 10 m A, the regulator switches internally to standby and the reset generator is turned off. The standby current drops to max. 700 µA.
Semiconductor Group 1998-11-01
