Siemens 5-V Low-Drop Voltage Regulator TLE 4263 User's Manual
Summary
This high-reliability 5V low-drop voltage regulator provides robust power management for critical electronics, featuring built-in watchdog logic and extensive protection against overcurrent, overtemperature, and reverse polarity. Ideal for applications requiring dependable operation in environments like automotive systems. The accompanying manual offers deep technical insight into component integration, detailing pin functions (reset threshold, delay), load response characteristics, operating specifications across a wide temperature range, and necessary external component requirements for easy PCB design implementation by professional engineers.

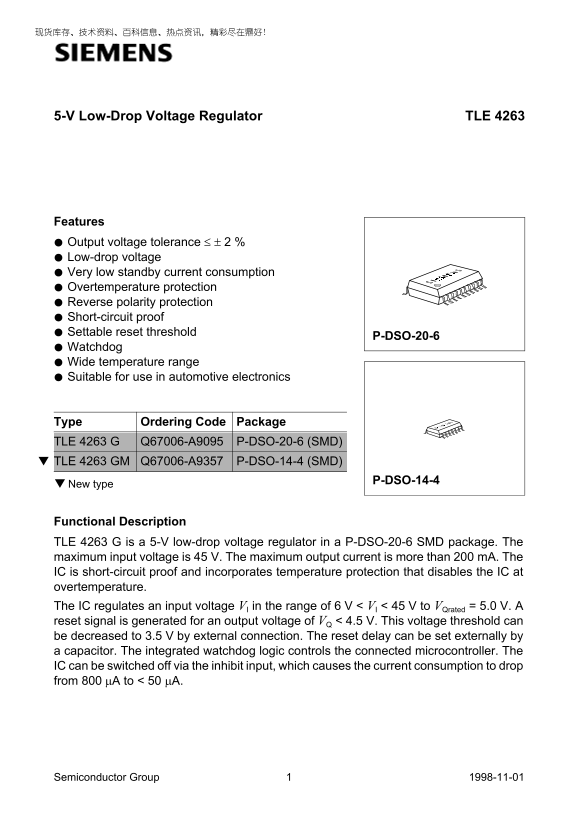

Page 1 Text Content
5-V Low-Drop Voltage Regulator TLE
Features Output voltage tolerance ≤ ± 2 % Low-drop voltage Very low standby current consumption Overtemperature protection Reverse polarity protection Short-circuit proof Settable reset threshold
P-DSO-20-6
Watchdog Wide temperature range Suitable for use in automotive electronics
Type Ordering Code Package TLE 4263 G Q67006-A9095 P-DSO-20-6 (SMD) TLE GM Q67006-A9357 P-DSO-14-4 (SMD)
P-DSO-14-4
▼ New type
Functional Description TLE 4263 G is a 5-V low-drop voltage regulator in a P-DSO-20-6 SMD package. The maximum input voltage is 45 V. The maximum output current is more than 200 m A. The IC is short-circuit proof and incorporates temperature protection that disables the IC at overtemperature.
The IC regulates an input voltage VI in the range of 6 V < VI < 45 V to VQrated = 5.0 V. A reset signal is generated for an output voltage of VQ < 4.5 V. This voltage threshold can
be decreased to 3.5 V by external connection. The reset delay can be set externally by a capacitor. The integrated watchdog logic controls the connected microcontroller. The IC can be switched off via the inhibit input, which causes the current consumption to drop from 800 µA to < µA.
Semiconductor Group 1998-11-01
Page Summary Contents For Siemens 5-V Low-Drop Voltage Regulator TLE 4263 User's Manual
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 16 |
| File Size | 115.71 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What output capacitor is recommended for stable operation?
Stability requires using a 22 mF or larger output capacitor with an ESR of less than or equal to 3 Ω.
How can I temporarily switch off the voltage regulator IC?
The device incorporates an INH (Inhibit) pin, which accepts a TTL-compatible, low-active signal to switch the IC off.
What protection mechanisms are built into the TLE 4263 regulators?
It features integrated protections against overload, overtemperature, reverse polarity, and short circuits.
